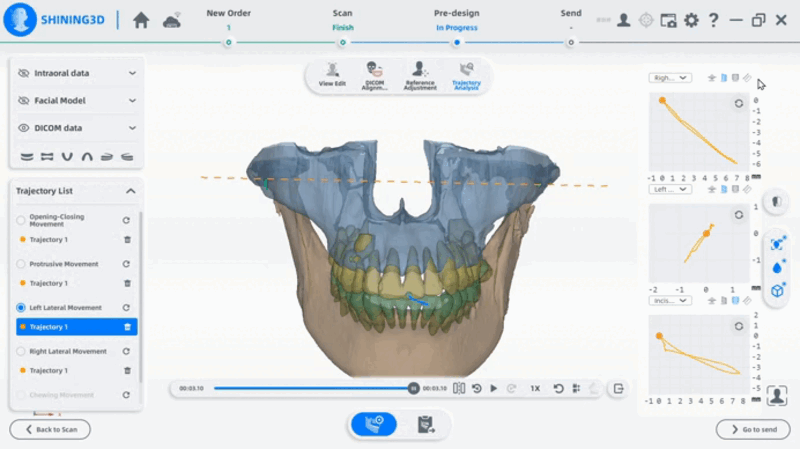

This feature allows you to measure both the distance and angle between two points along the trajectory curve when the playback is paused or stopped. It helps you analyze mandibular movement in greater detail and supports more precise evaluation of motion characteristics.
Steps:
1. Enter Measurement Mode: Click “Measure” to activate the measurement tool.
2. Select Two Points: Click two different positions along the trajectory curve to define the measurement range.
3. View Measurement Results:
- Distance: The straight-line distance between the selected points is automatically calculated and displayed.
- Angle: A two-dimensional coordinate system is automatically established based on the upper point. The system calculates and displays the angle formed between the two points.
4. Adjust Measurement Points (Optional): You can drag either of the selected points along the curve. The distance and angle values will update in real time to reflect the new positions.
Note:
- To redefine the measurement, simply select a new pair of points.
- When switching the projection plane of the trajectory, any existing measurement results will be cleared automatically.
