Tracker Recreating


During the process of mandibular movement recording, the markers attached to the lower jaw may occasionally fall off due to saliva. In such cases, there is no need to worry – our software provides a Tracker Recreating function specifically for the lower jaw. This feature enables users to reattach and reposition markers without needing to repeat any previously completed steps.


Comparison

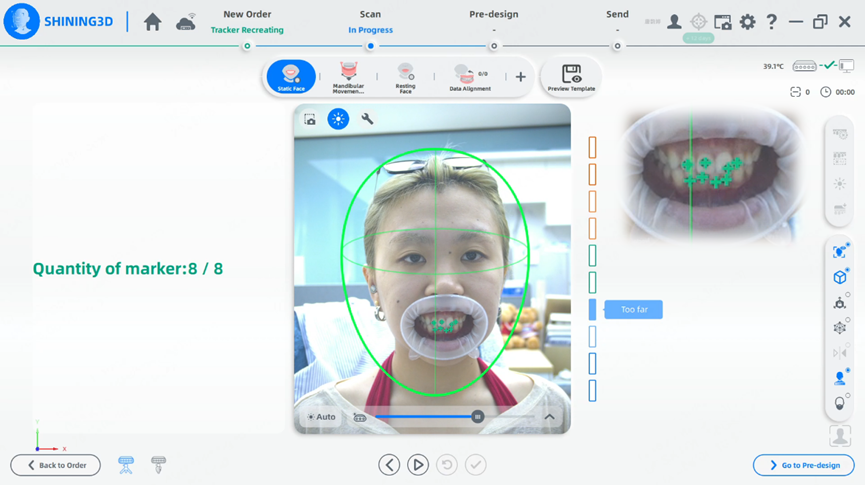

  • Initial recognition state: the number of detected markers matches the configured amount, with all markers shown in green.

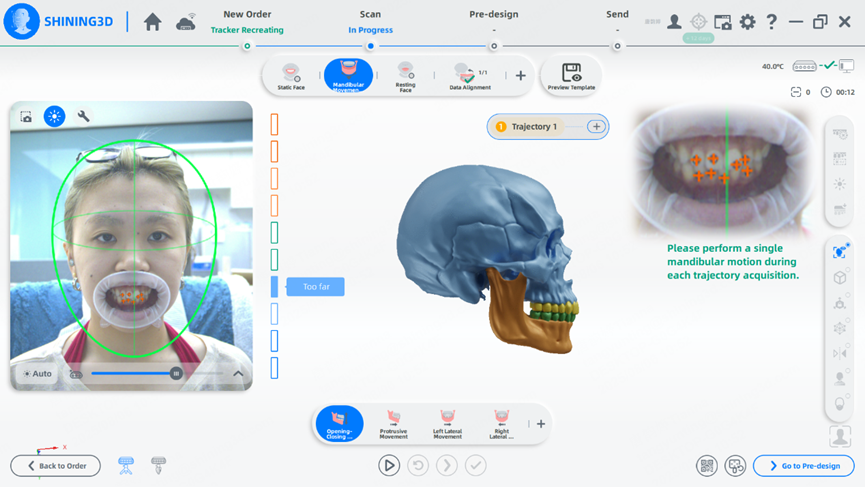

  • Post-movement state of mandibular markers: all markers are displayed in red.


Steps:

  1. Remove any marker that has shifted and replace it with a newly attached marker.
  2. Keep the patient’s head stable in the scan frame, and adjust the distance to a suitable range from MetiSmile.

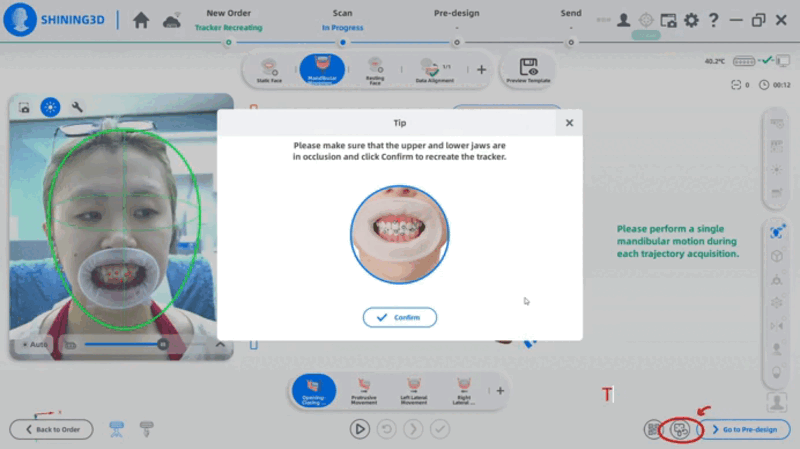

  3. Click “Tracker Recreating” and then “Confirm”. Once confirmed, these markers will turn green, indicating they are ready for subsequent operations.
