Order Creation


Before starting the scan, it is essential to create a new order to facilitate better tracking of individual cases and effective communication with patients.


  • New Order Creation

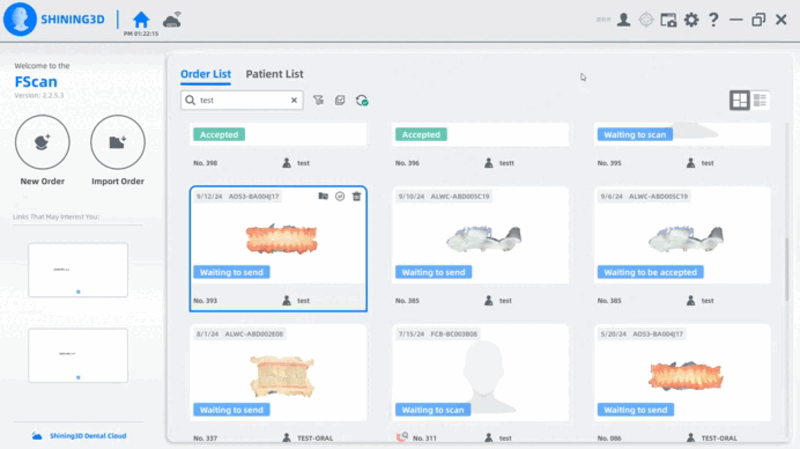

Click “New Order” on the homepage to access the order creation interface.

Step 1

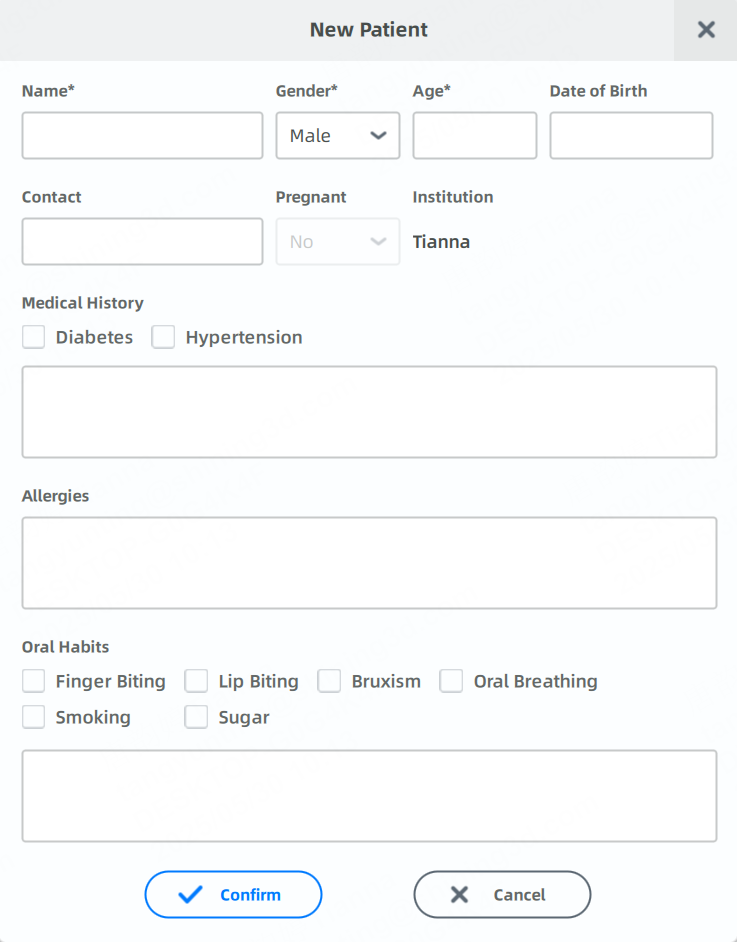

Click “New Patient” and fill in patient information.

Required fields: Name, Gender, and Age.

Step 2

Click “Edit Doctor” to input the doctor’s name, email address, or phone number, then click “Add”. Users can also delete previously entered doctor information.

Step 3:

Select the type of visit: First Visit or Follow Up.

Tip: If the visit is a follow-up, directly fill in the patient's name.

Step 4

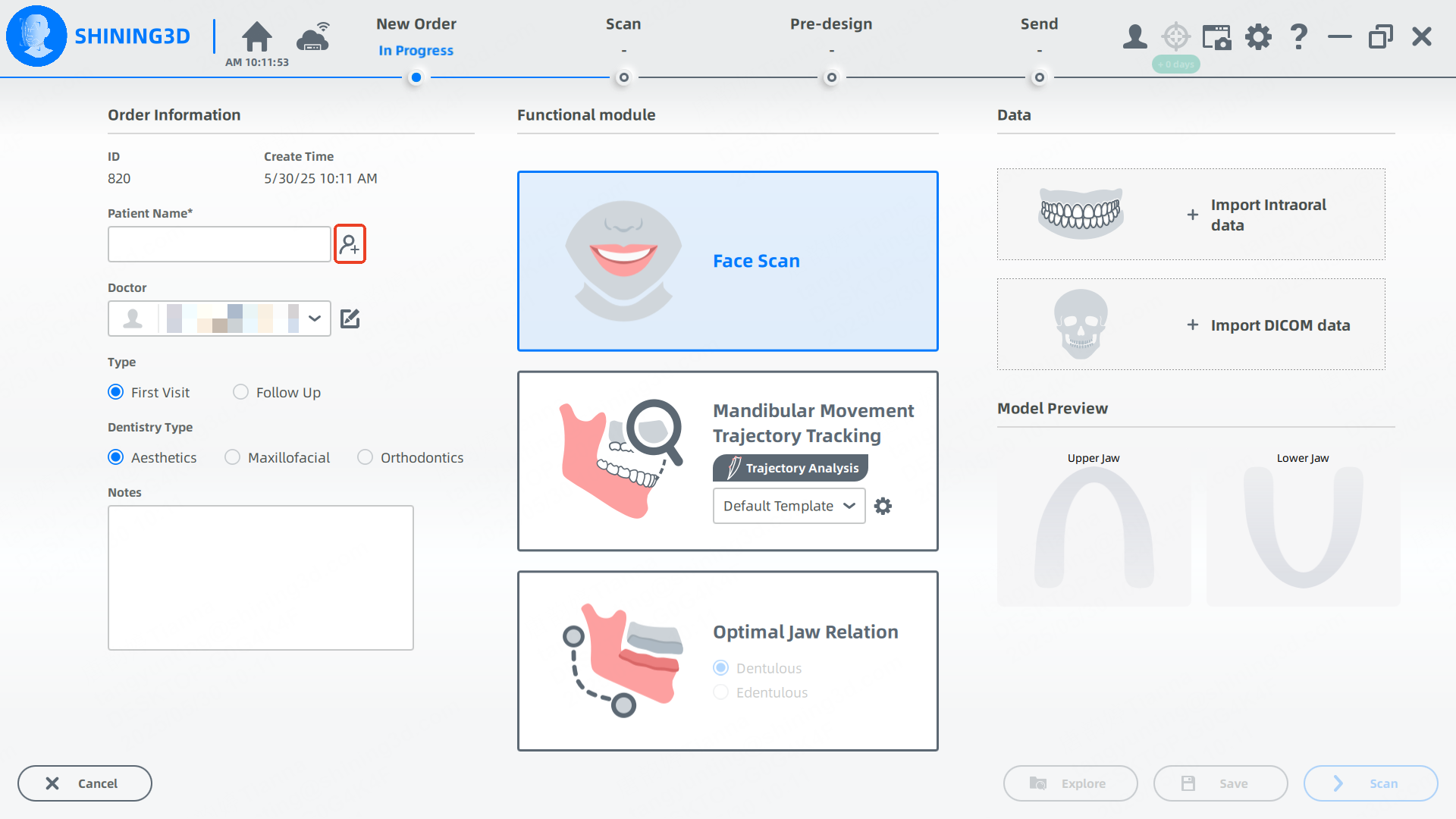

Choose the relevant dentistry type based on the scanning purpose: Aesthetics, Maxillofacial, or Orthodontics.

Step 5:

Select the functional modules needed, including Face Scan, Mandibular Movement Trajectory Tracking (optional), and Optimal Jaw Relation (optional).

Step 6: Import intraoral scan data

Click “Import Intraoral Data”, our software supports importing upper jaw and lower jaw data (in .beb, .obj, .ply, or .stl formats) separately, or an entire project in .inproject format.

After importing, models can be previewed. Please refer to the link below for details: Preview Intraoral Scan Data

Tip: If the intraoral scan data is not imported at order creation, it can be imported later during scanning.

Step 7: Import the DICOM data (Optional).

Subsequent Operations:

Operation

Description

Explore

Open the file folder where the order is located.

Save

Save the current order information for subsequent scanning.

Scan

Proceed with scanning.


  • Import Order

When the local orders that need to be re-scanned or designed, users can import the data to avoid repeated creation. Click “Import Order” on the homepage and choose the corresponding .inProject or .dentalProject, and so on format file.

Please refer to the link below for details: Import Orders Across the Institution



  • Order Conversion

When logging into FSLauncher with the same account used in DentalLauncher, the intraoral scan order will display on the homepage simultaneously.  To create a facial order from an existing one and skip importing intraoral scan data, click “Conversion” on the top right of the intraoral scan order, or double-click the order.
