For detailed instructions on creating an order, please refer to the following link: Order Creation
Mandibular Movement Trajectory Tracking & Analysis (Optional) – Template Creation

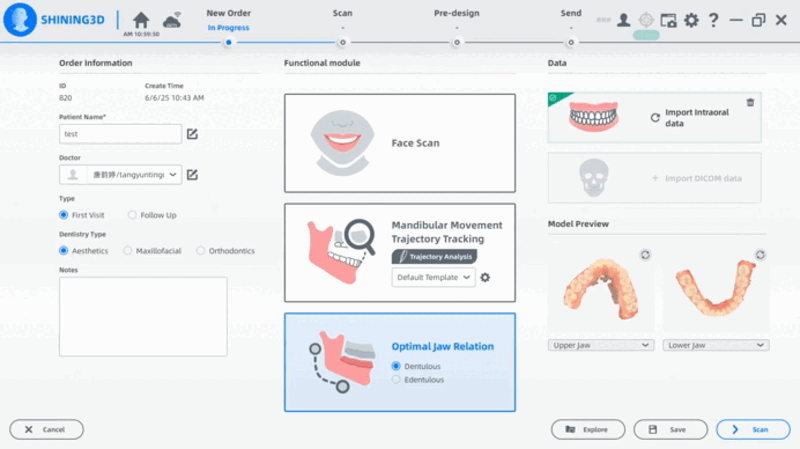

Among the functional modules, mandibular movement trajectory tracking can apply a template to determine the kind of customized face, movement trajectories, jaw positions, and data acquisition times.
1. Click “Edit” to manage and modify templates. The default template includes the following: Static Face, Resting Face, Opening-Closing Movement, Protrusive Movement, Left Lateral Movement, and Right Lateral Movement. Each movement trajectory is recorded once by default. Customized templates can be added based on these defaults.
2. Use the drop-down list to select different templates.
3. Tips:
a. A maximum of 10 customized templates can be saved.
b.The number of trajectory recordings can range from 1 to 5.
c. If the desired movement is not selected, users can click “+” to add a customized face, movement, or jaw position in the scan step.
- Optimal Jaw Relation: In this module, users should select Dentulous or Edentulous based on the actual case.
