In addition to manually aligning DICOM data and intraoral data, our software now offers an automatic alignment function. Users do not need to adjust the slider control, they can quickly align the two types of data and view the specific deviation values on the heat map.

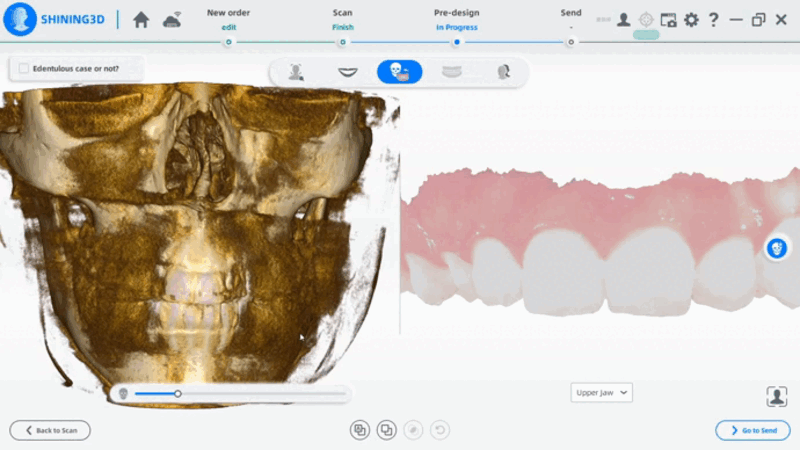

Step 1: Auto alignment
Click the “Auto Align” button and leave the software to take care of the rest.

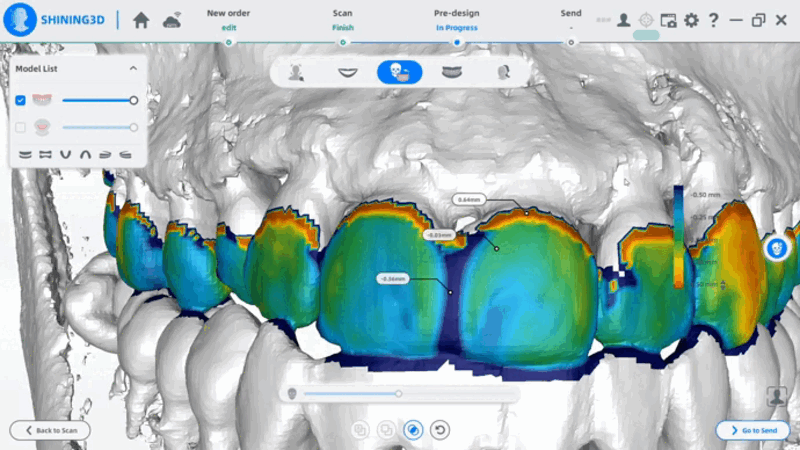

Step 2: Check the alignment effect
Click the “Heat map” to view the alignment effect through the visible light spectrum. Users can also click on the heat map of the dentition to check the deviation in alignment between the intraoral data and the DICOM data at specific positions.
Additionally, users can click the “Clear” button in the upper left corner of the label or double-click the label with the left mouse button to delete it.
Tips:

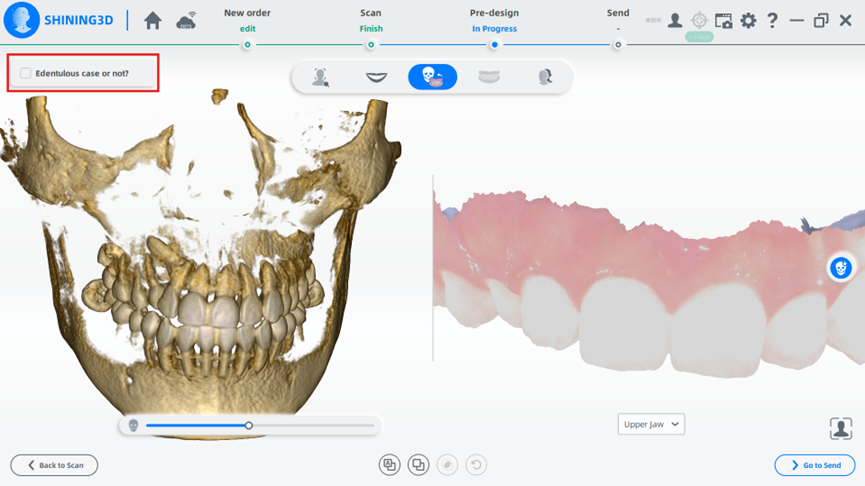

If the scanned jaw is edentulous, find "Edentulous case or not" on the upper left and check it.
