AccuFab-D1s Main board Replacement


Preparation:

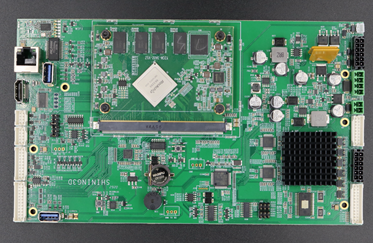

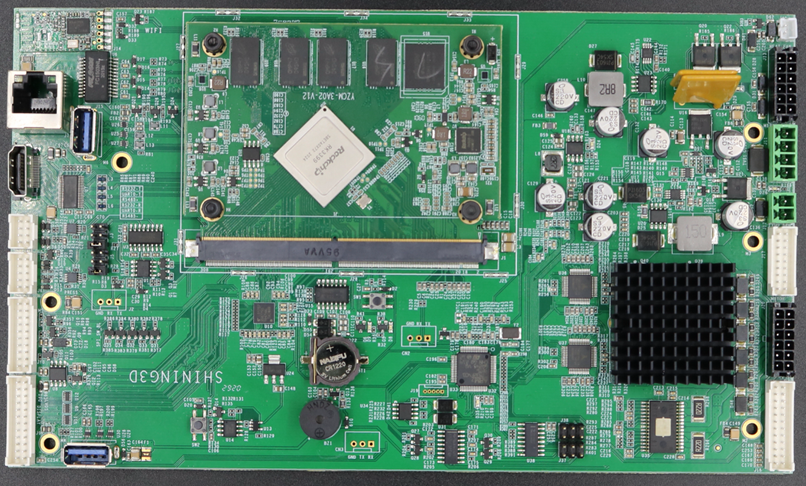

Main board

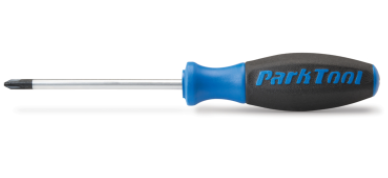

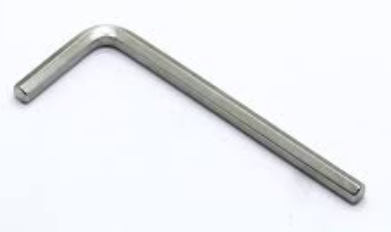

Philips screwdriver-PH1Allen driver-2.5mmGloves



The procedure for replacement of main board is :

1. Replace the core board

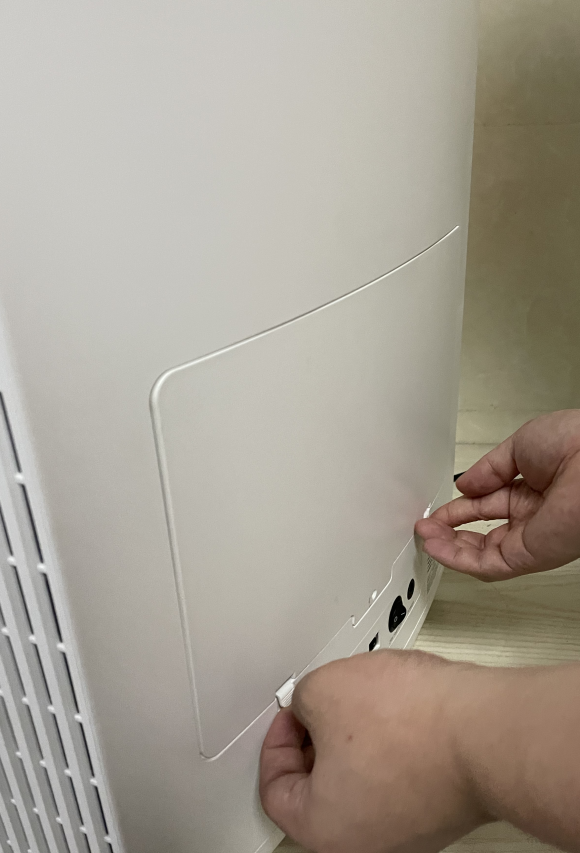

 a. Remove the back window of printer

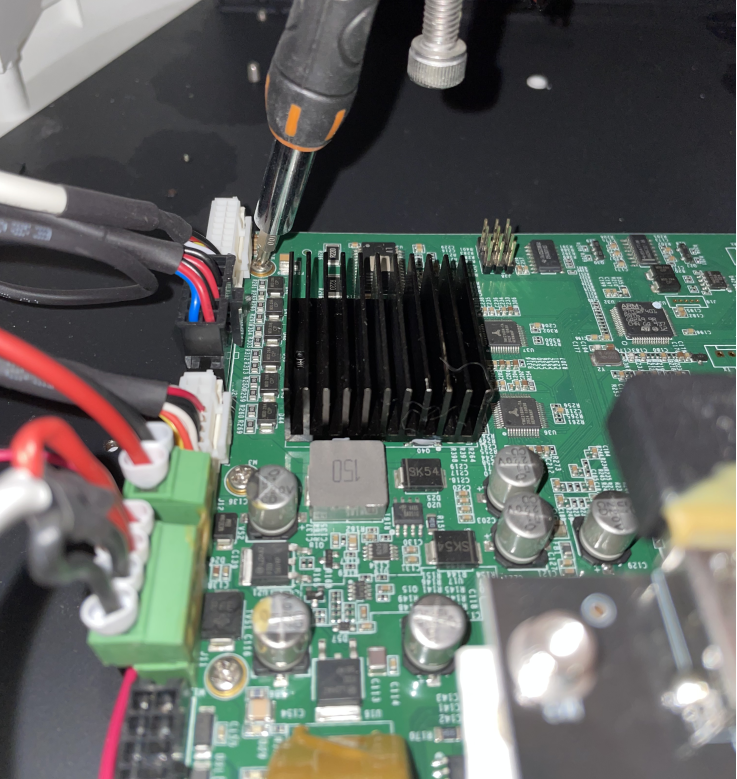

b. Remove 6 screws holding the mainboard and disconnect all ports from main board(Better to take a picture before removal)

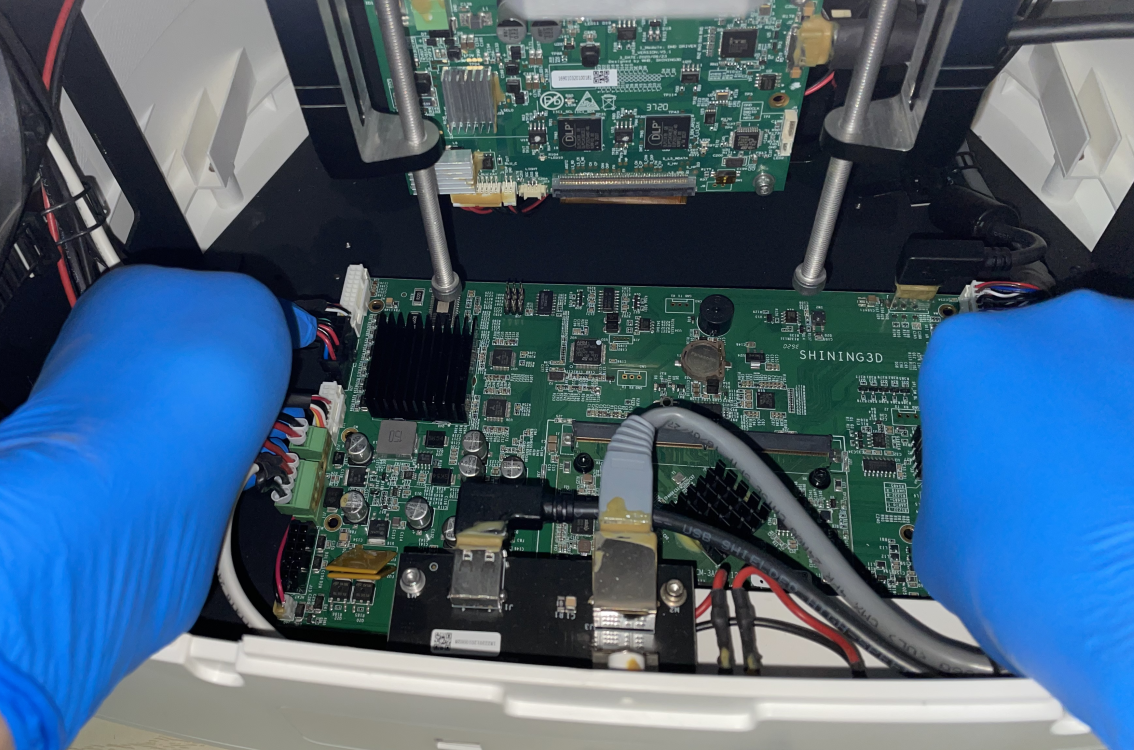

c. Move the mainboard towards back and expose the core board.

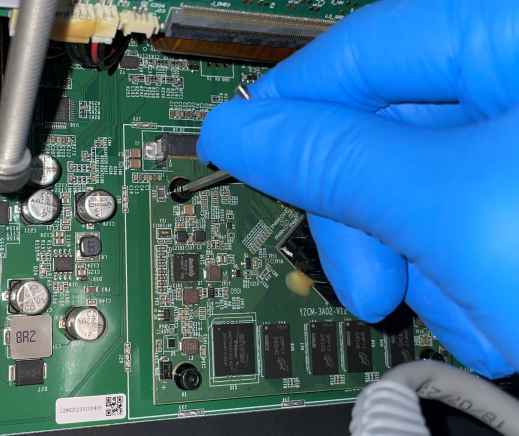

d. Remove 4 screws holding the core board

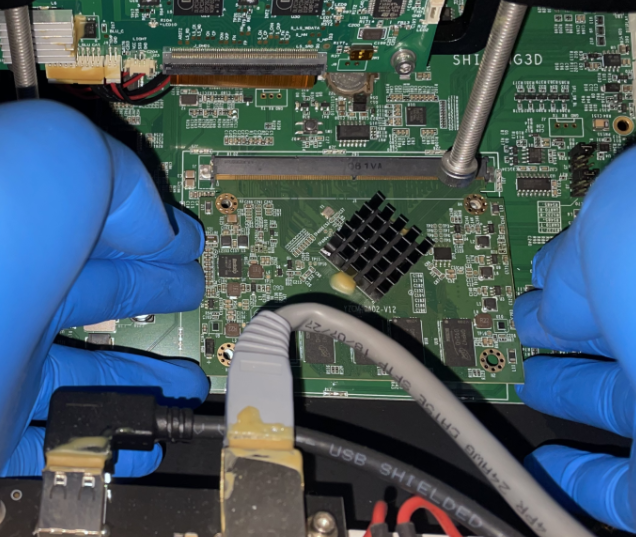

e. Take out the core board and install it to the new main board.

f. Connects the new main board . And test by turn on the printer-Place the main board properly

  1.  If printer can turn on successfully. Fix the mainboard and proceed to next step-Power off the printer before fixing
  2.  If not check the connections of core board or return to step e.to reinstall the core board.

4.Ready to print.


Please contact dental_support@shining3d.com for further assistance.
