AccuFab-D1s Core Board Replacement


Preparation:

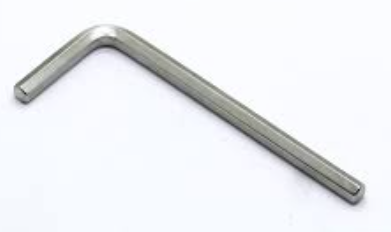

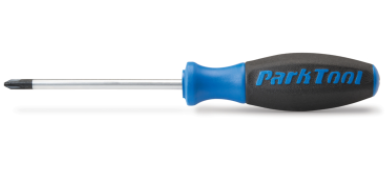

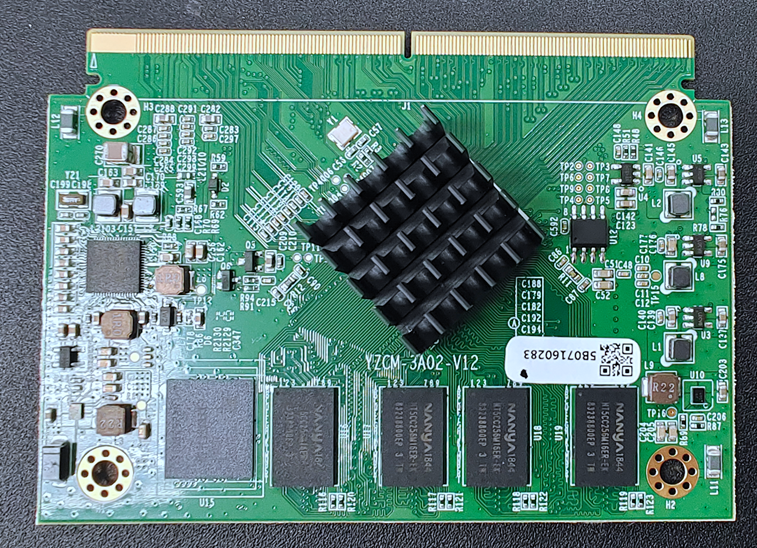

Core boardPhilips screwdriver-PH1Allen driver-2.5mmGloves



The procedure for replacement of core board is :

1. Record the settings of the original.

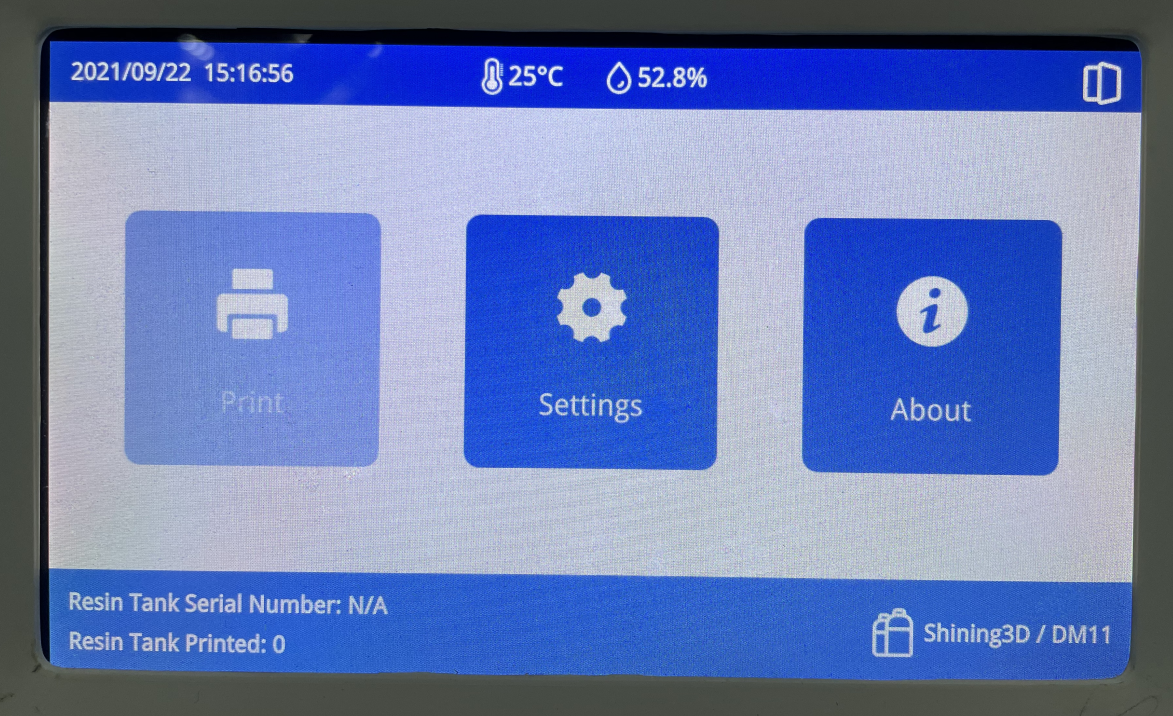

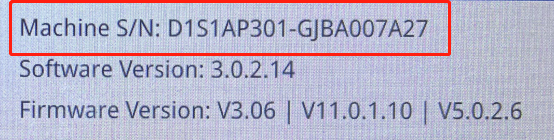

  •  Serial no. of printer in 'About'

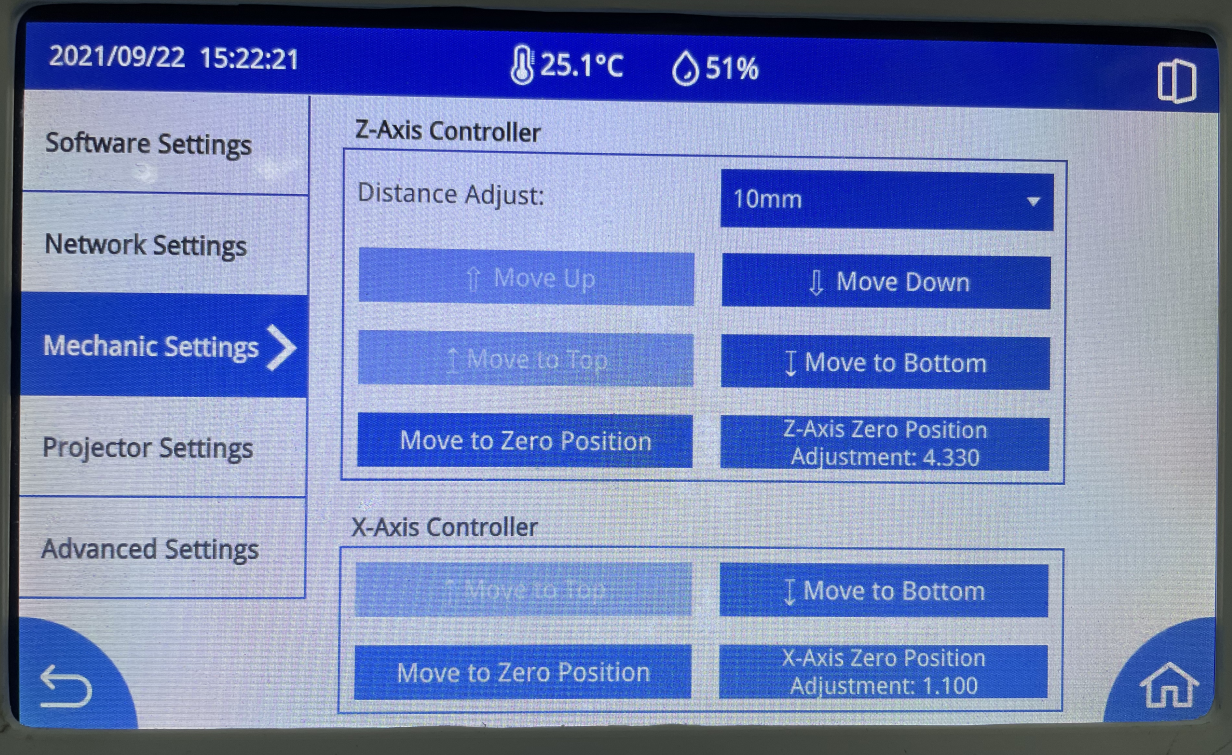

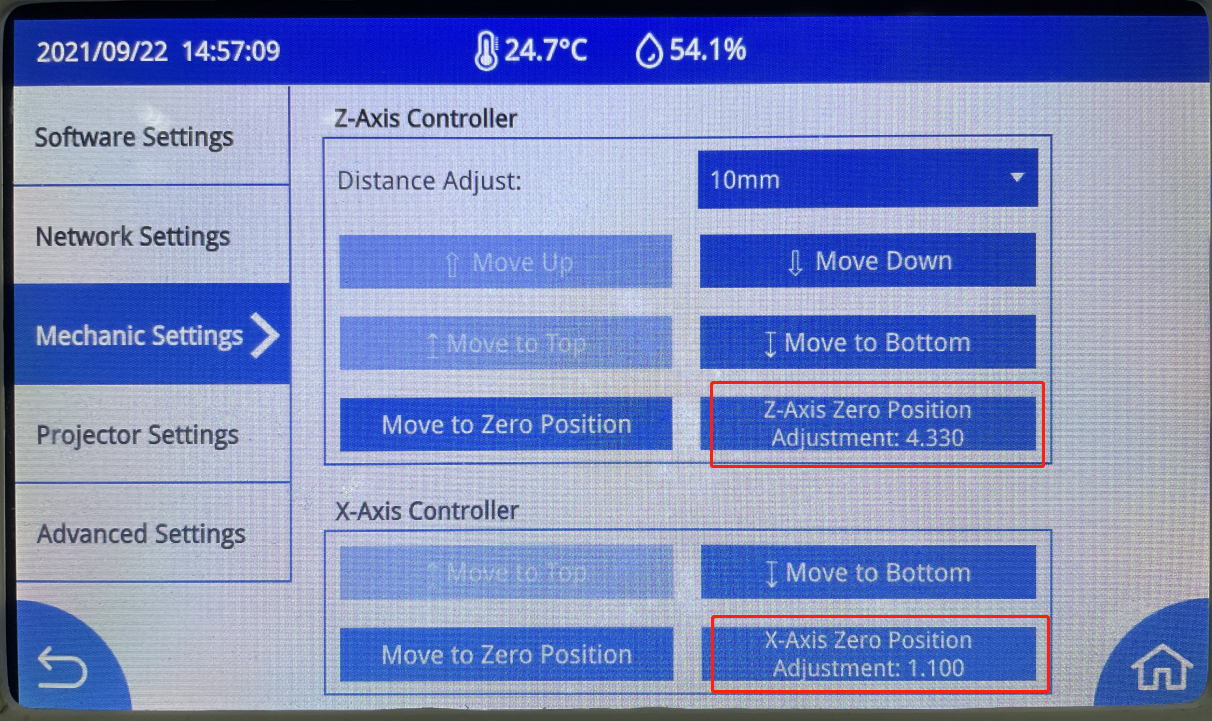

  •  Z-Axis Zero Position
  •  X-Axis Zero Position


2. Replace the core board

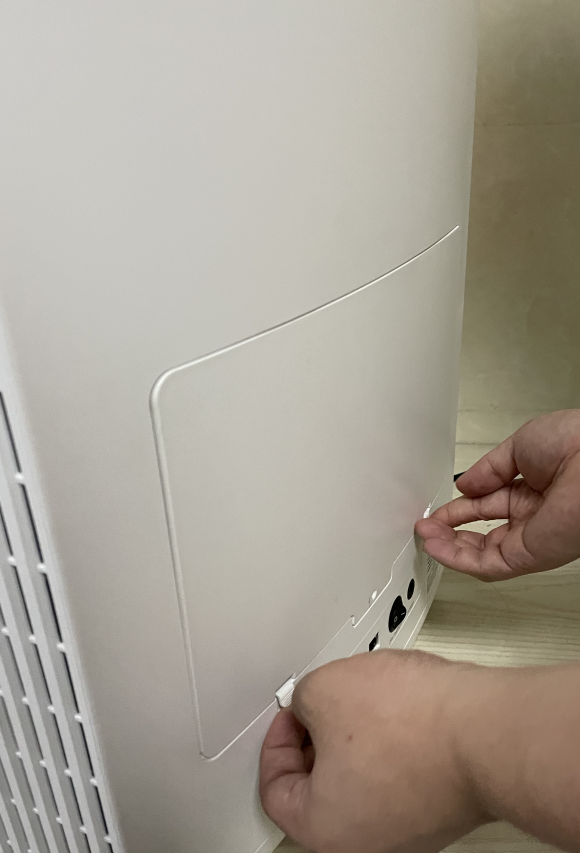

 a. Remove the back window of printer

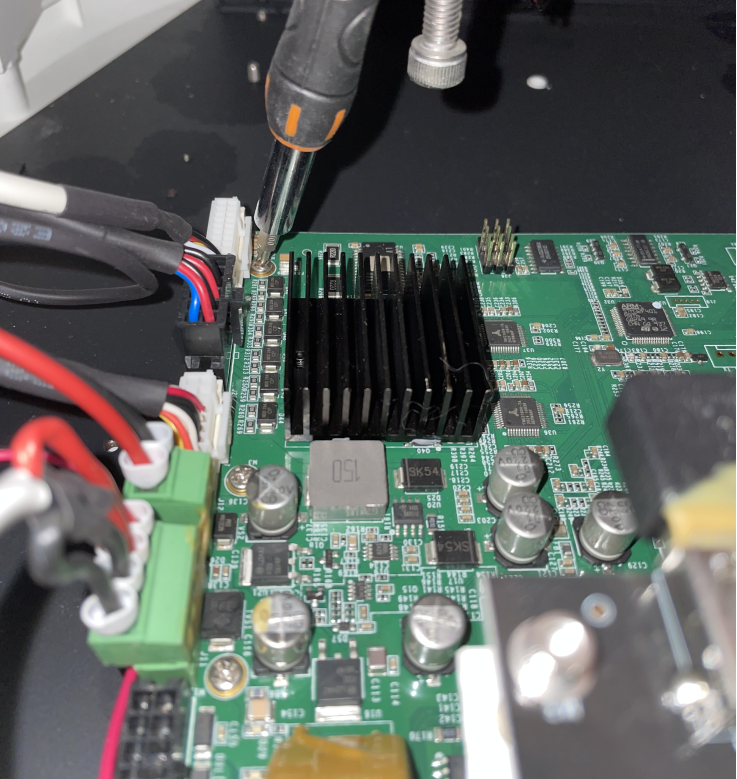

b. Remove 6 screws holding the mainboard

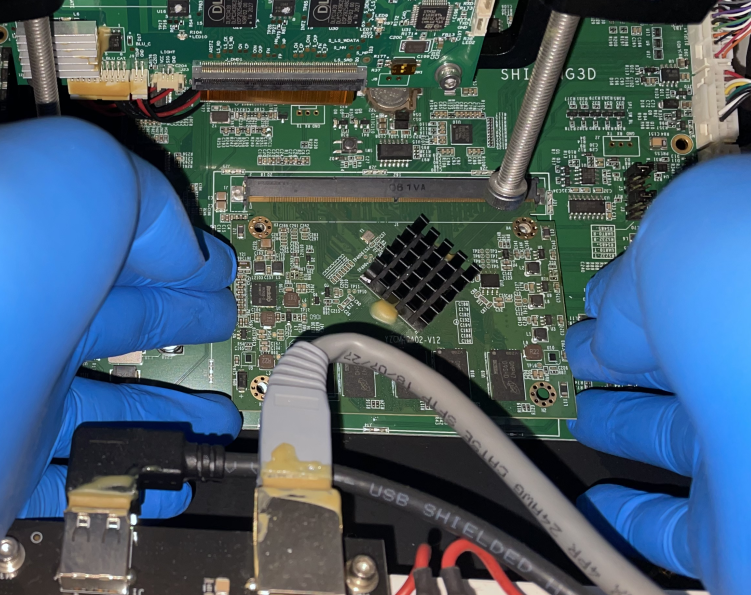

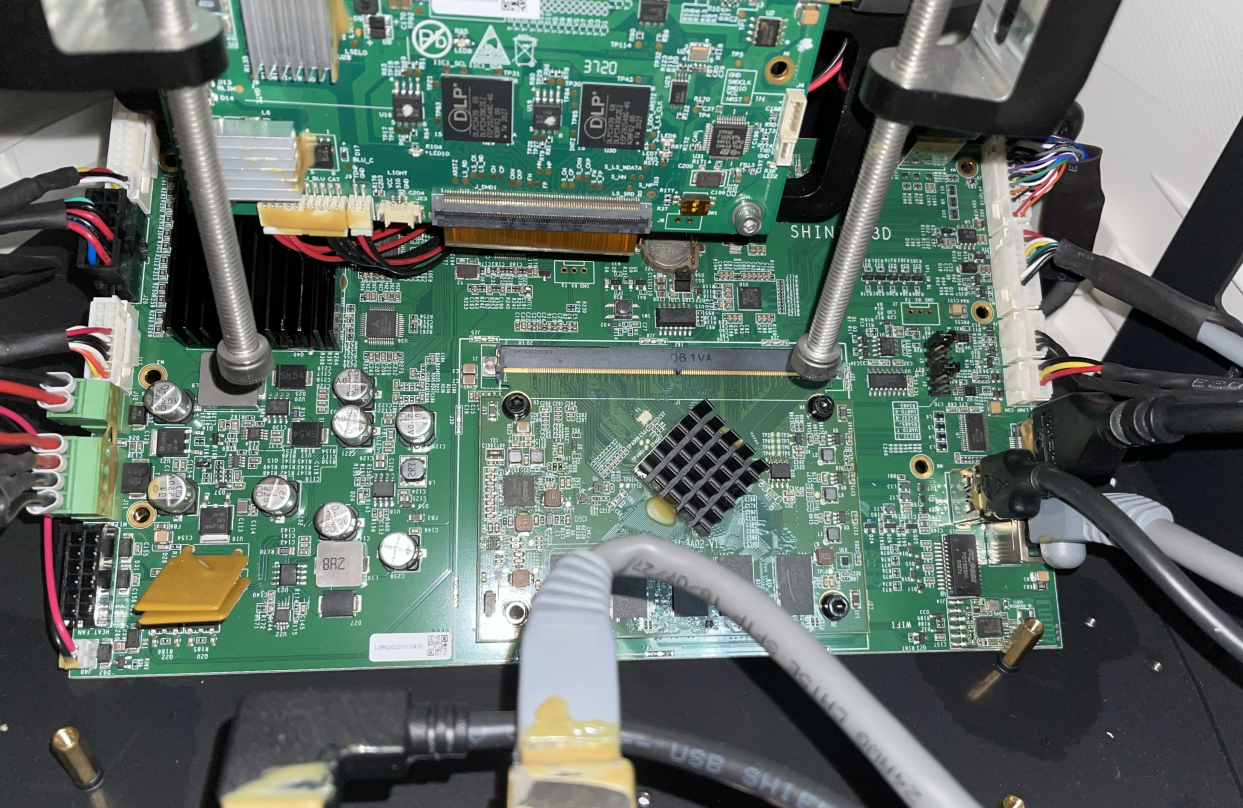

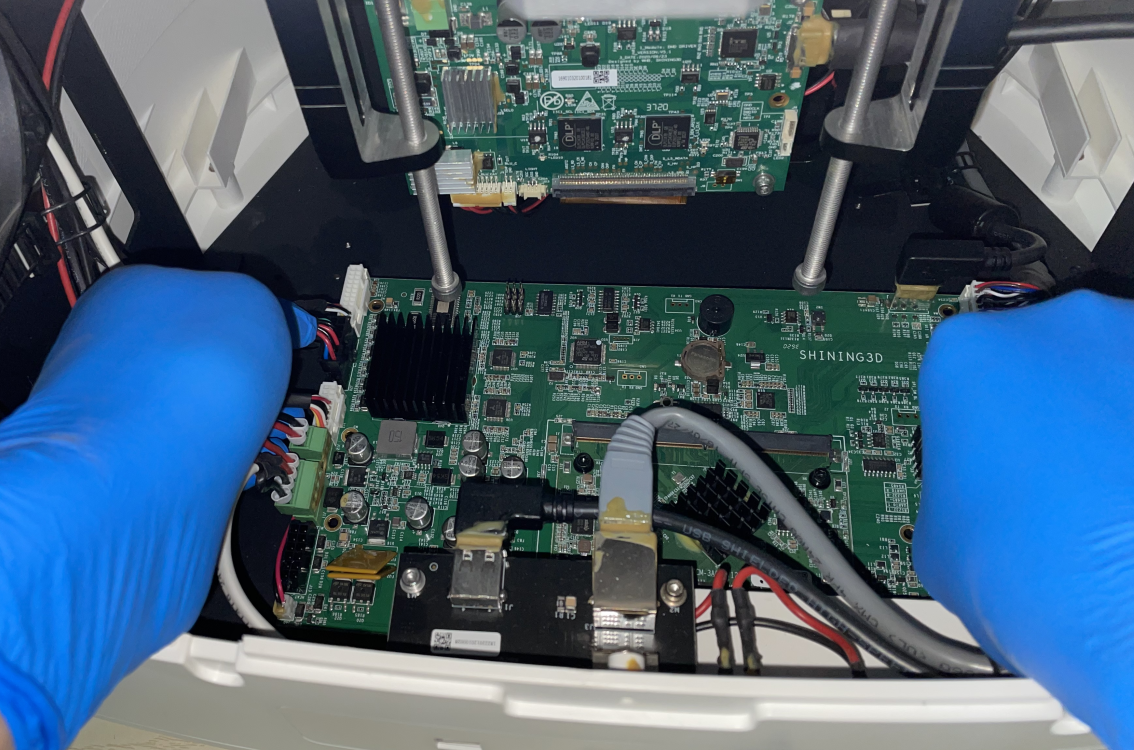

c. Move the mainboard towards back and expose the core board.

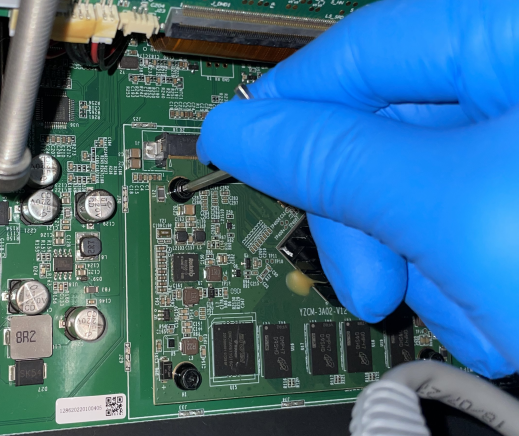

d. Remove 4 screws holding the core board

e. Replace the core boardf. Test by turn on the printer-Place the main board properly

  1.  If printer can turn on successfully. Fix the mainboard and proceed to next step-Power off the printer before fixing
  2.  If not check the connections of core board or return to step e.to reinstall the core board.

3. Change settings for the new core board

  1. Send serial no. to dental_support@shining3d.com for license. And apply the license file.
  2. Remove platform and resin tank

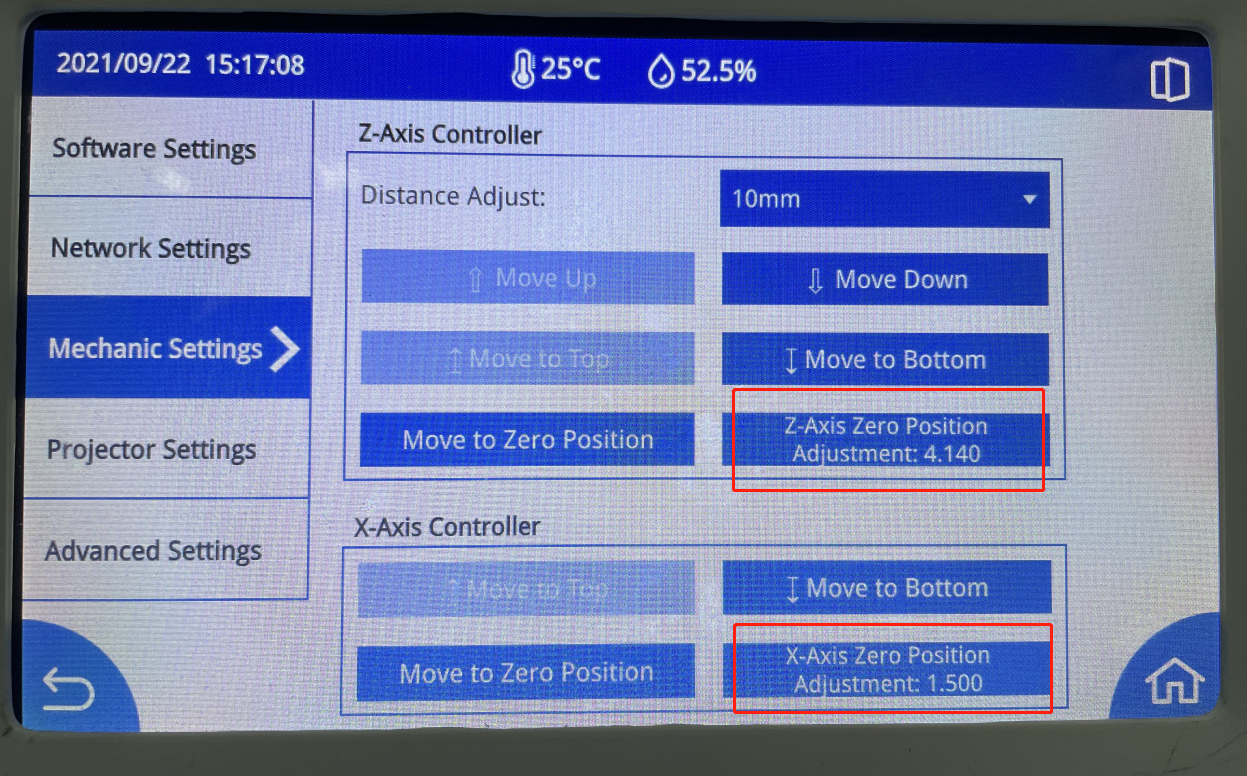

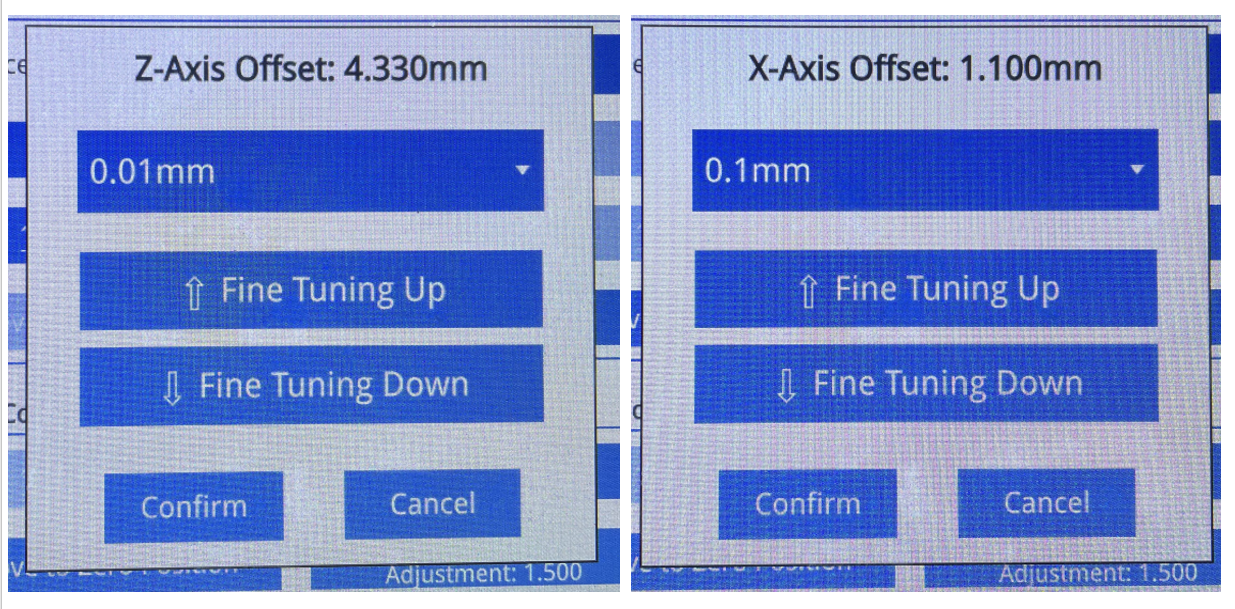

  3. Setting the Zero posistion for Z and X axes

4.Ready to print.


Please contact dental_support@shining3d.com for further assistance.
