AccuFab D1s Z-Limit Switch Replacement

Tools Preparation:

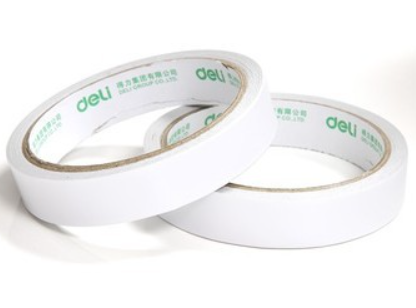

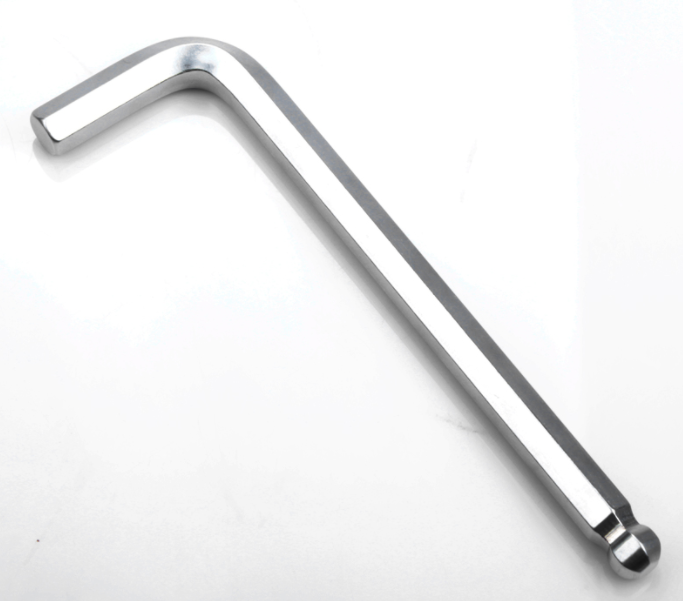

M2.5 Ball End Hex Key WrenchDouble-sided tape

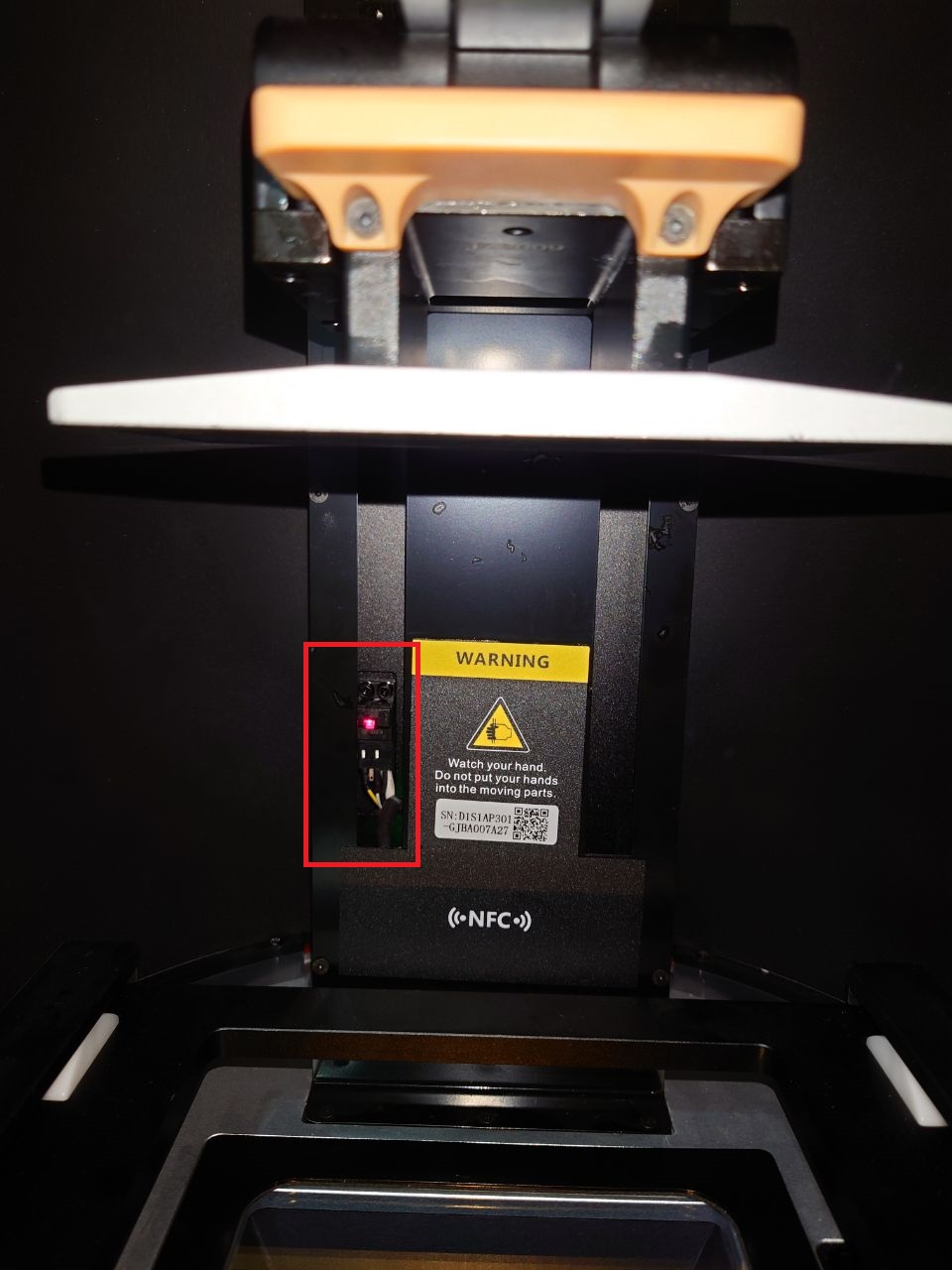

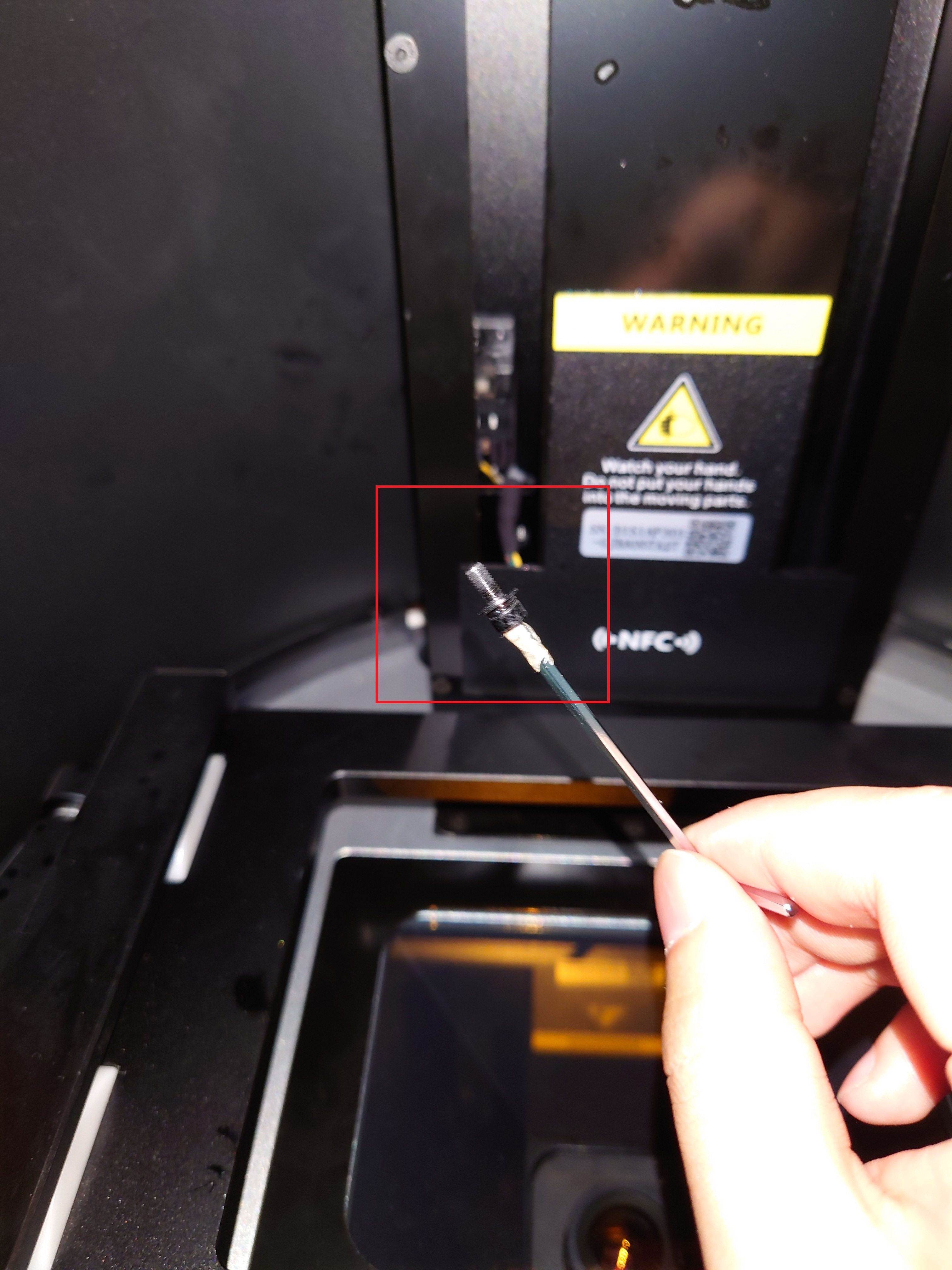

Step1: Find the location

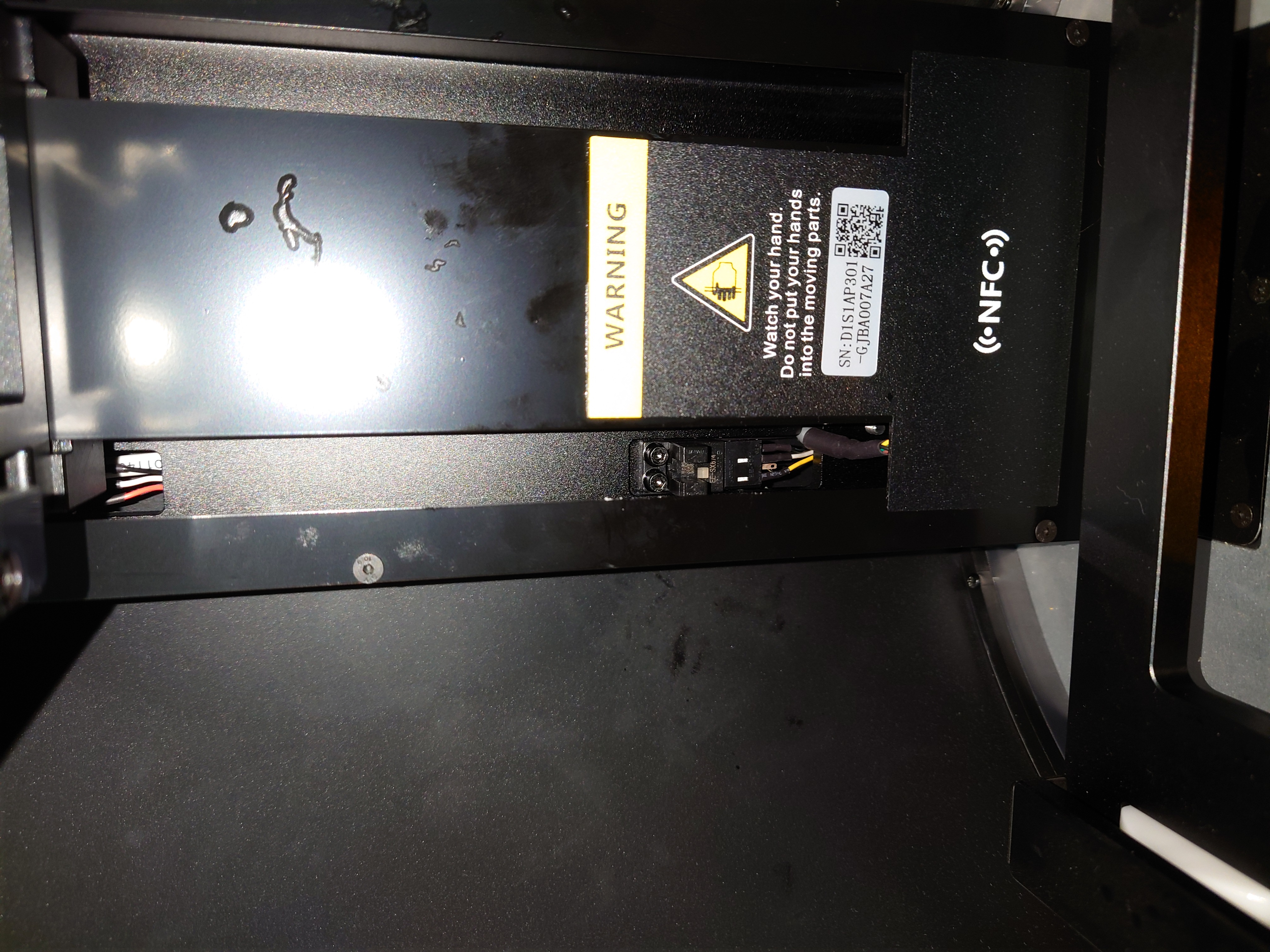

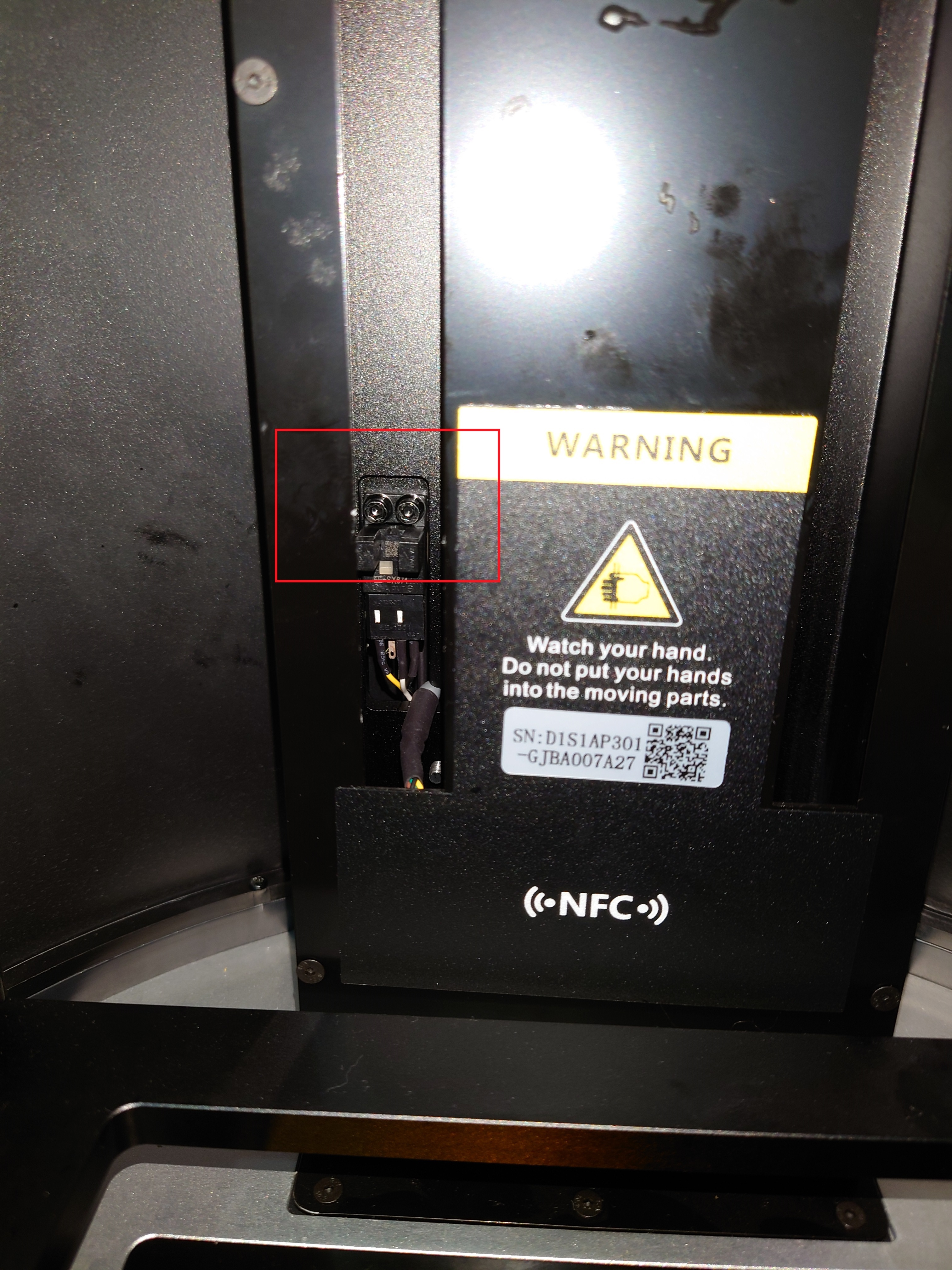

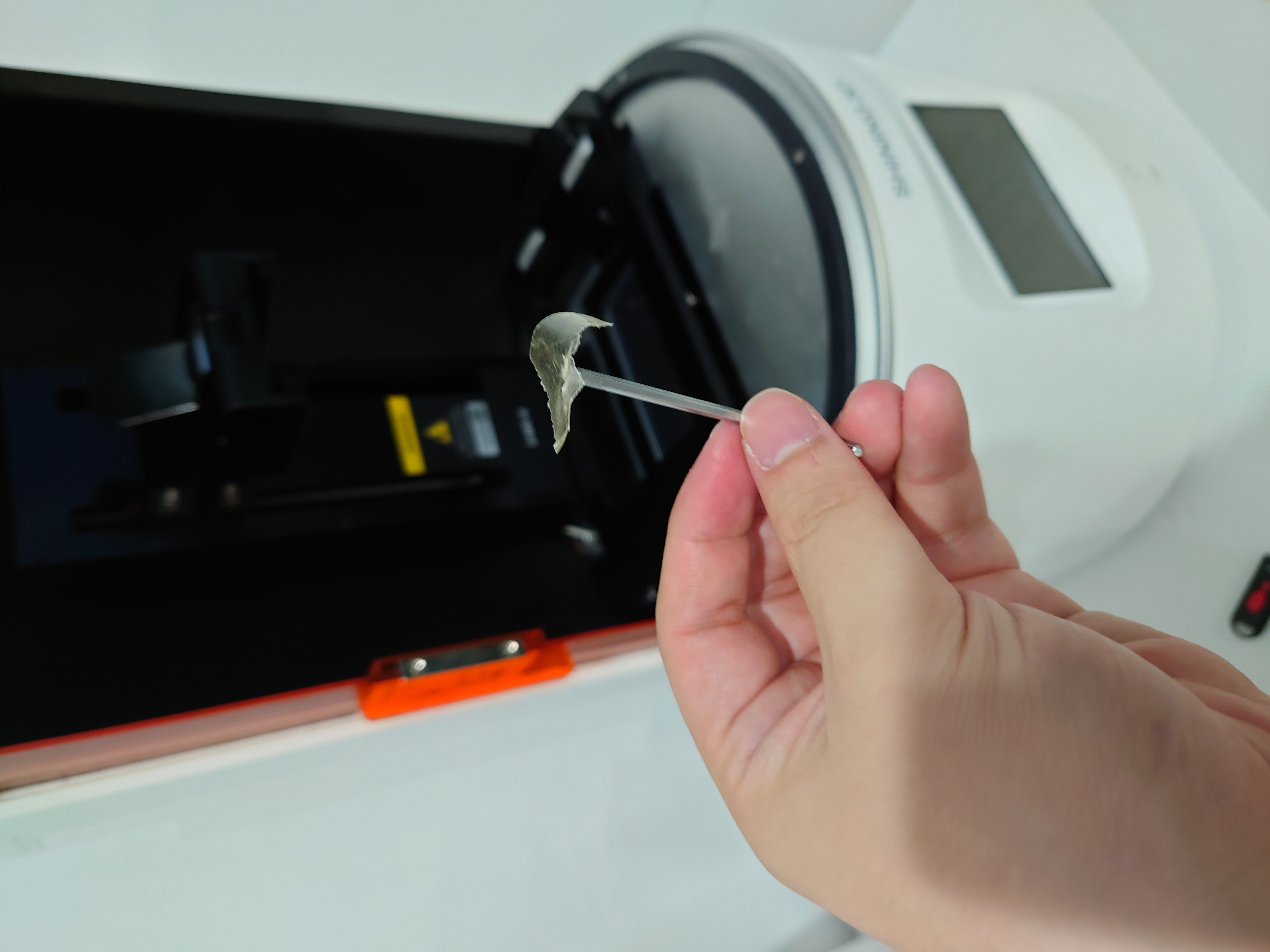

Step2: Stick the double-sided tape on the ball end to prevent dropping the screw and unscrew them carefully. (note: do NOT drop the screws in the Z-axis area)

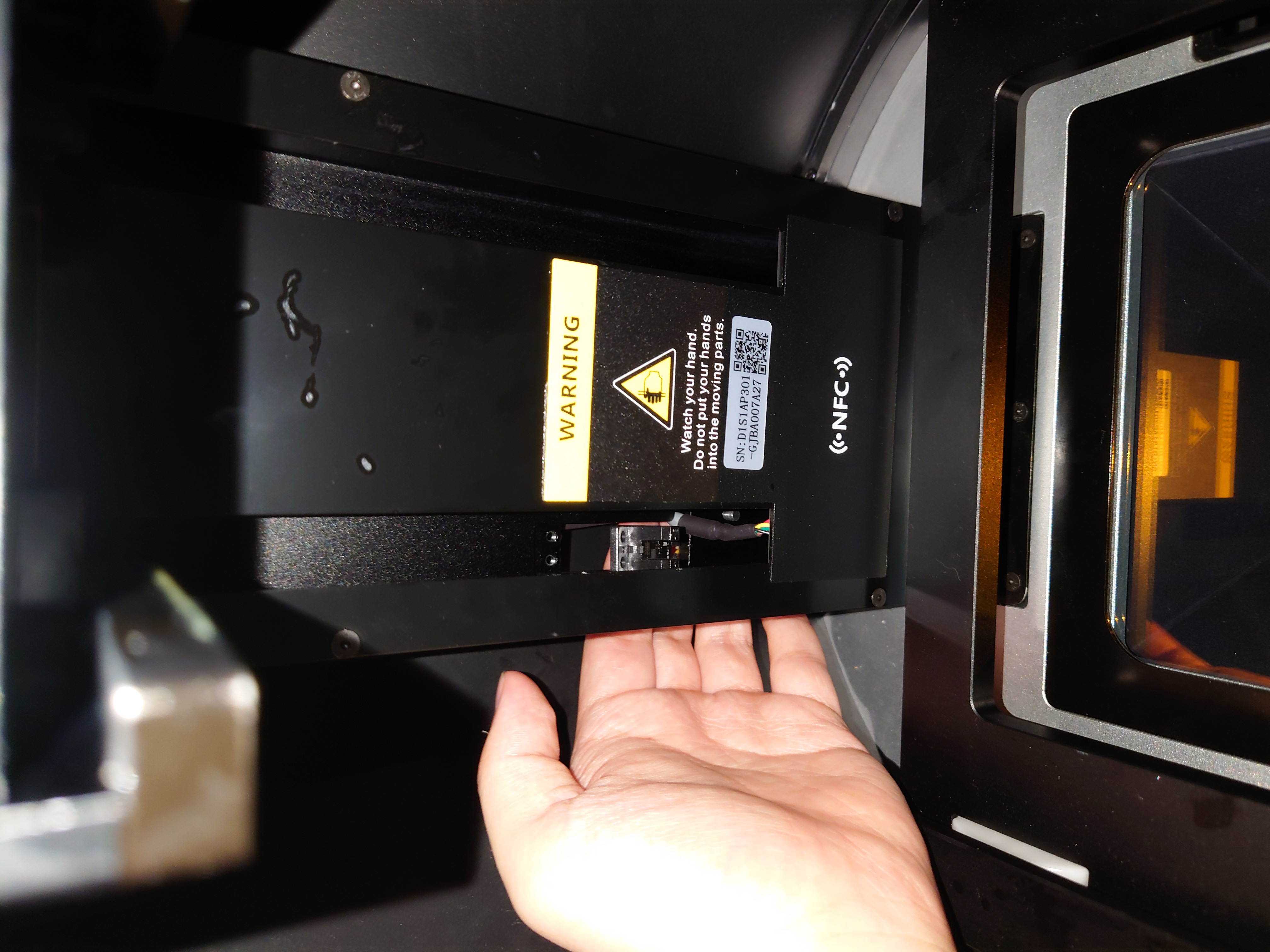

Step3: Hold the limited switch from the back with one hand, and pull it out carefully.

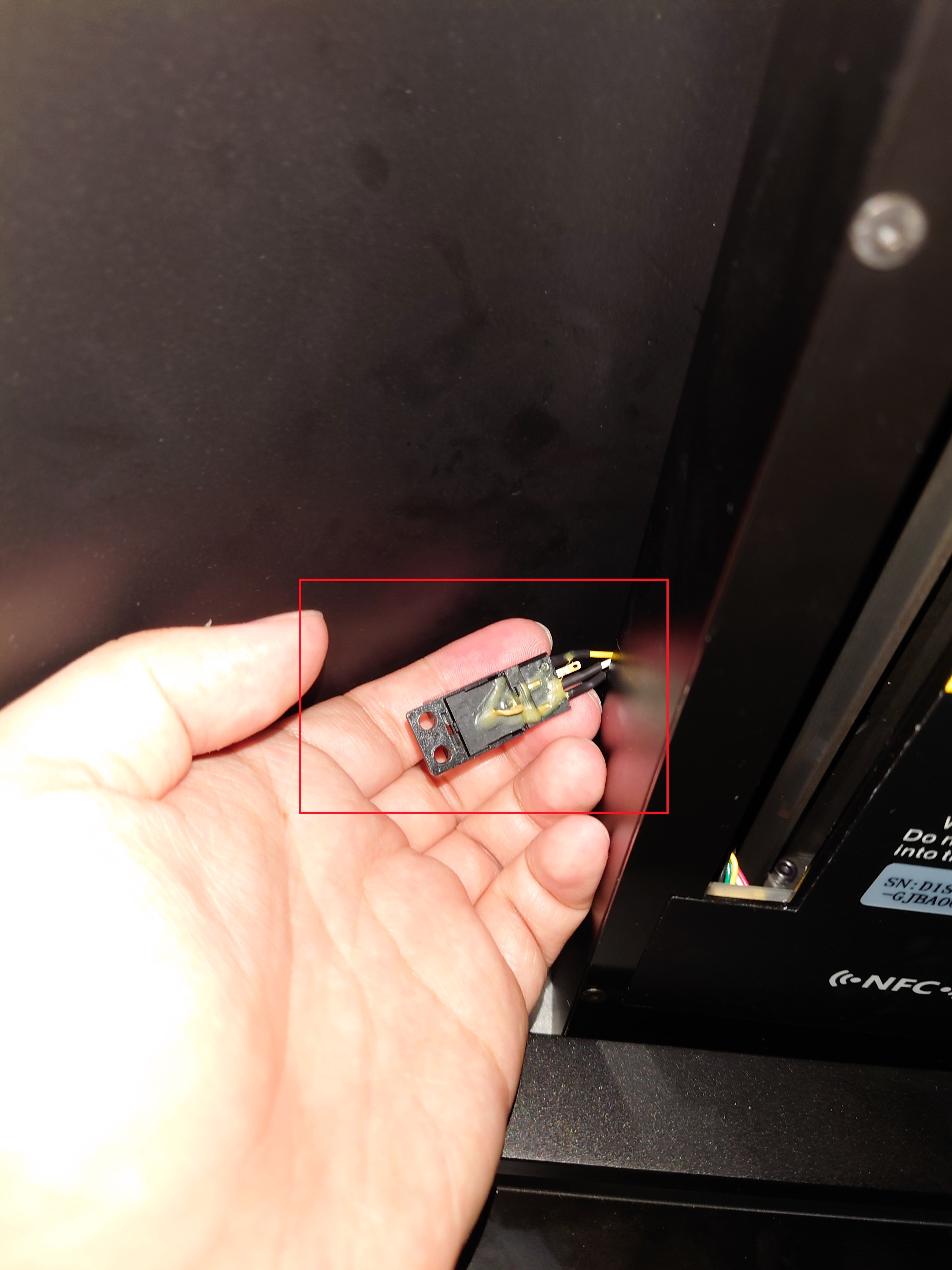

Step 4: Peel off the glue and unplug the limited switch

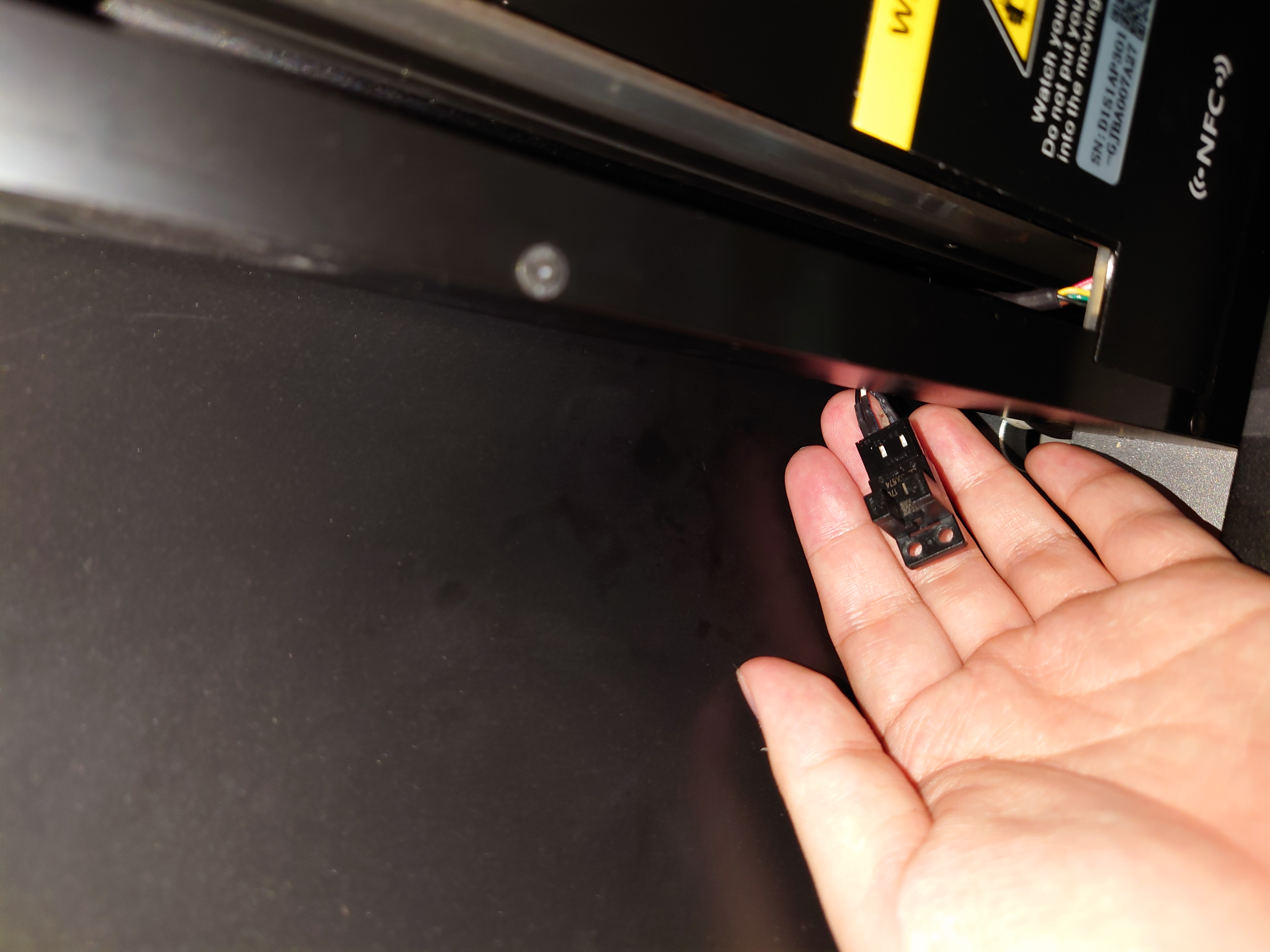

Step 5: Replace with a new one and put it back to the original position




Step 6: Turn on the printer and check if the limited switch is ON (red light). Due to the limited switch's position has changed a little, we need to do the manual level.

How to do the manual level for AccuFab-D1s?
