1. Relevant Configuration

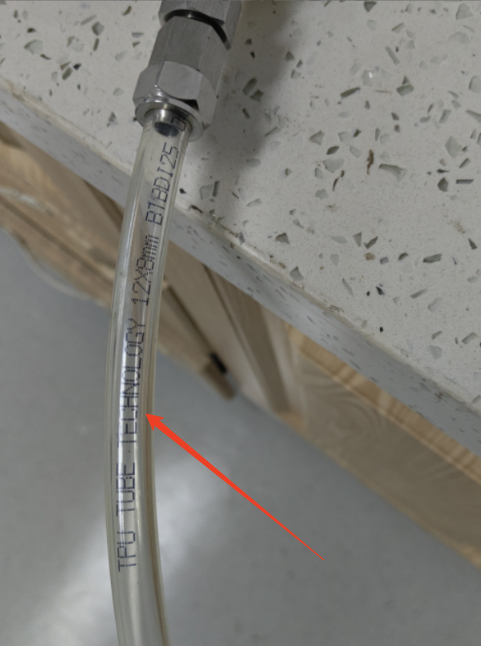

Rigid Tube Specifications: Outer Diameter 12mm, Inner Diameter 8mm
Hard tube fitting thread specification: M16 × 1.5, right-hand thread.
2. Installation Instructions
Step 1

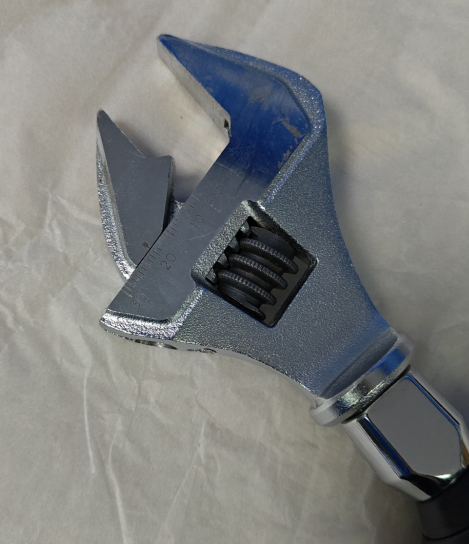

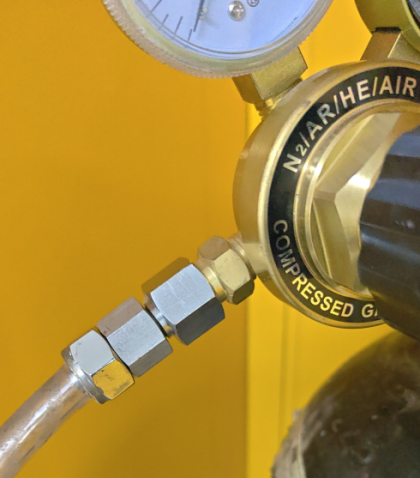

Use a wrench to unscrew the fitting from the pressure reducing valve.
Step 2

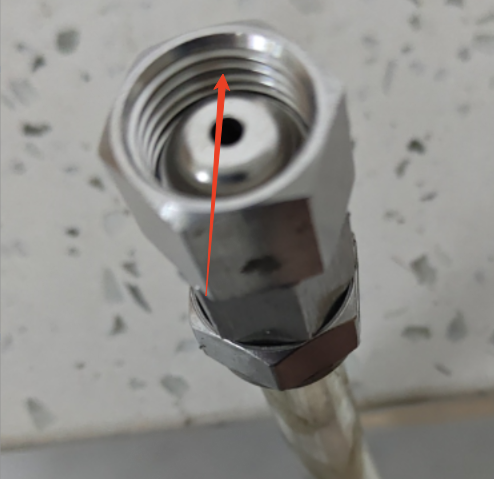

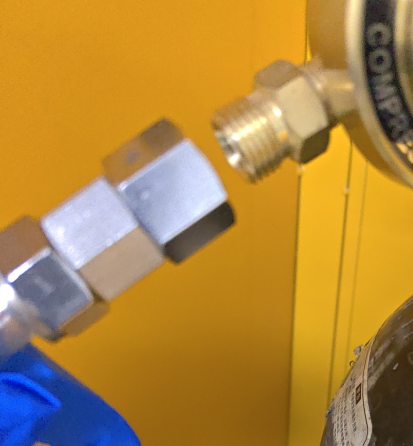

Use a wrench to tighten the threaded fitting on the rigid tube.
Step 3
Firmly insert the quick connector on the rigid tube into the protruding port at the rear of the machine.
