After completing scanning and design, you can export the order to your chosen local folder.
Steps:
1. Click “Export” in the send stage.

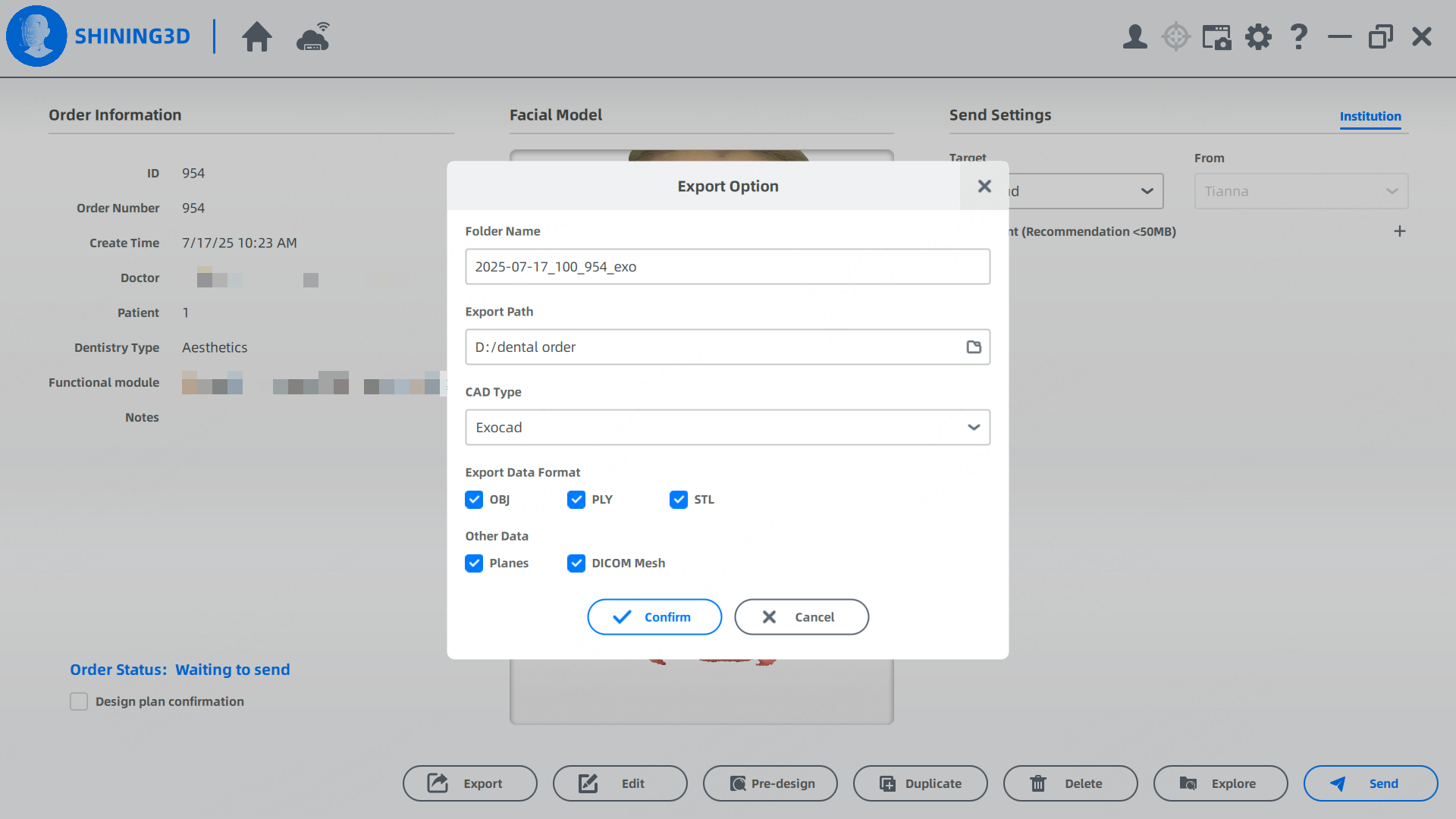

2. Configure export settings
（1）Folder Name
（2）Export Path
（3）CAD Type
| Exocad | 3rd party | |
Export Data Format | OBJ | √ | × |
PLY | √ | √ | |
STL | √ | √ | |
Other Data | Planes | √ | √ |
DICOM Mesh | √ | √ | |
Tips：
- The 3rd party option allows you to export an XML format file for use in other design software.
- After defining the anatomic planes in the Reference Adjustment step, you can export them to design software without having to re-specify them.
- If you have imported and aligned DICOM data, enabling DICOM Mesh allows you to export the segmented DICOM data.
3. Click “Confirm” to start exporting the order.
4. The export folder will open automatically when the process completes successfully.
