How to create an order?
The steps for creating an order are similar to those in the normal workflow.
Attention: From V3.5.6.6, the intraoral photogrammetry is independent from the implant dentistry type. Users should select the intraoral photogrammetry to enable the workflow of full-arch implant cases. We also added the workflow of cap scan bodies, you can refer to the article: Cap Scan Body.

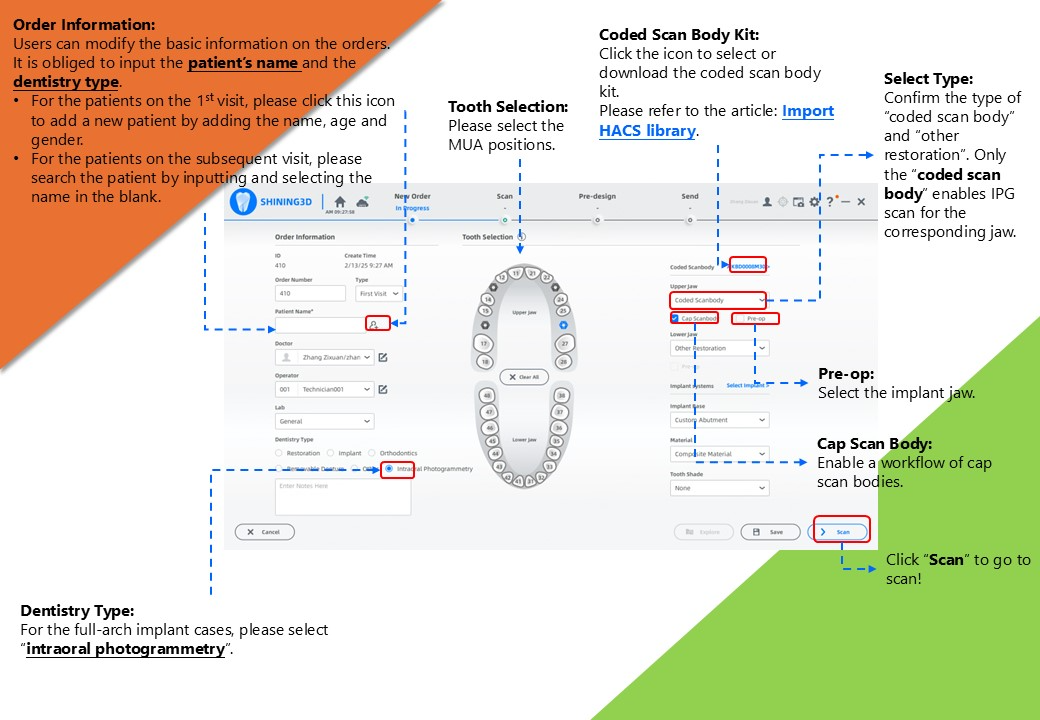

STEP 1: Basic info

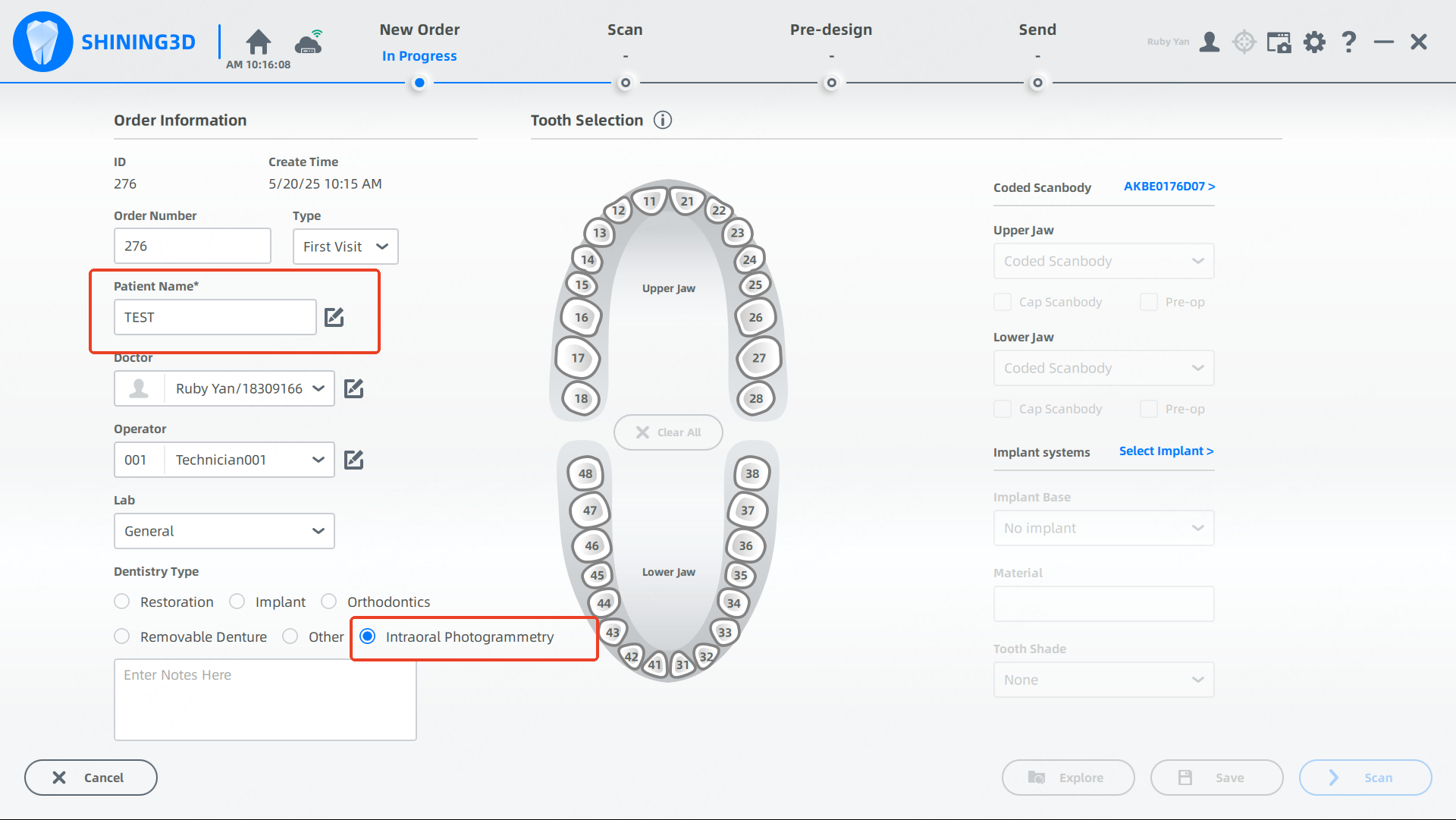

Users need to input the patient’s name and select the Intraoral Photogrammetry dentistry type.
STEP 2: Select teeth

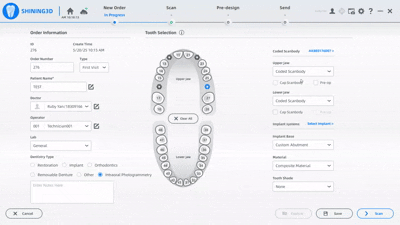

- Users need to select the MUA positions. The number of MUA should be chosen according to the real situation or the position on the temporary teeth.
- Simply select the tooth position and then the MUA position will change to screw icons.
- Import the HACS database at the first time using a new HACS kit. Please refer to the article: Import the HACS Library.
STEP 3: Confirm the pre-op scan
In the final restoration stage of full arch implant cases, the existing temporary teeth can be scanned to register bite data. As for immediate loading cases, users can also record the occlusal relation ship before surgery. Hence, in this case, it is necessary to enable the pre-op scan.
Simply select the need for ‘pre-op’ on the right hand side and tick the box below the corresponding arch.
STEP 4
Click “Scan” to the next stage.
