STEP 1: Import the oral data

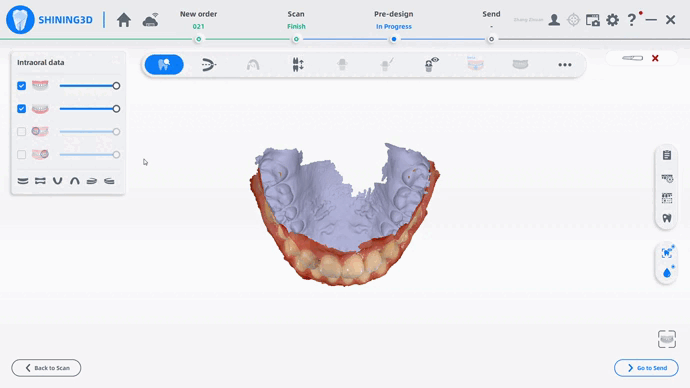

Enter the pre-design stage of an order, click the button on the control bar, and click the “MentronTrack” button to launch the program. A pop-up containing all oral data of the patient will appear. Users need to choose the data that they want to compare. Up to 10 groups of data could be selected simultaneously. Click the “confirm” button to finish importing. The program will conduct segmentation subsequently.
STEP 2: Mark Teeth

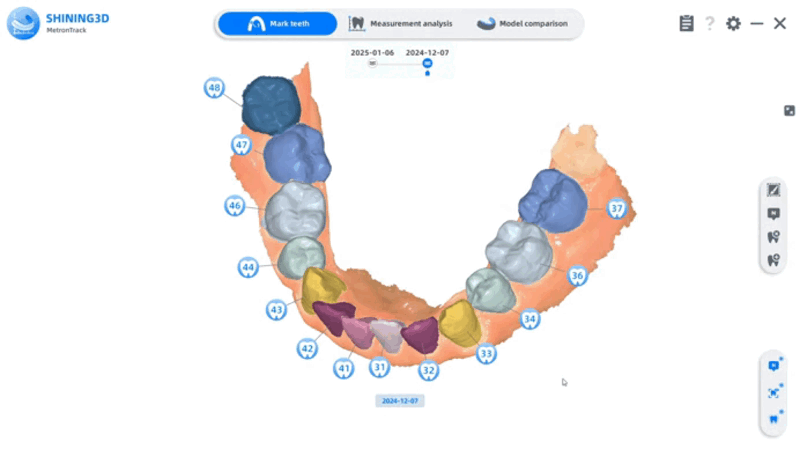

After automatic segmentation, you can check the results in the stage of marking teeth.
Select the data

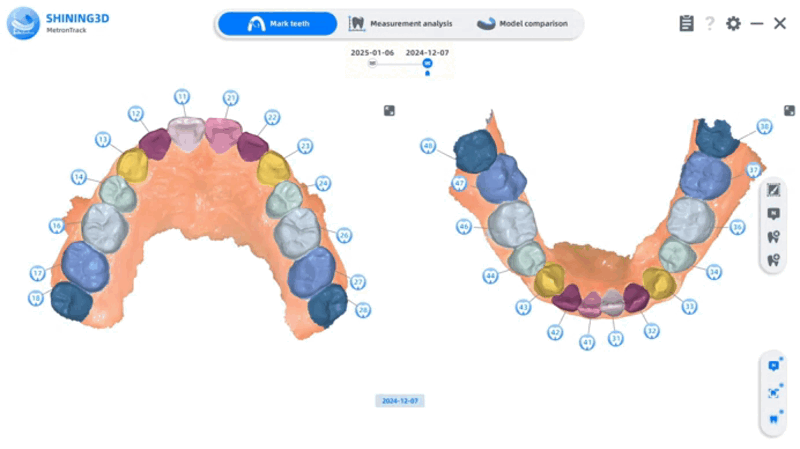

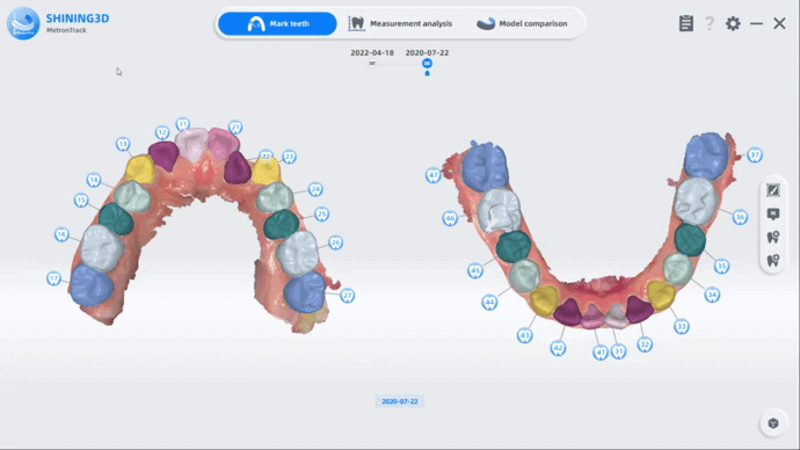

The patient’s oral data is arranged chronically on a timeline, as shown by the blue cursor with the scan dates above. Drag the cursor to select the model to check.
Modification tools

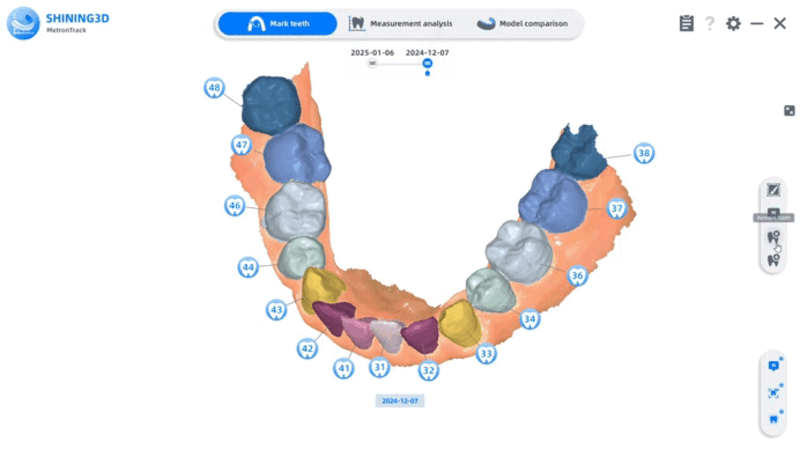

Users can apply various modification tools on the right side to modify the segmentation results.
Modify area: This tool can be helpful for an unclear segmentation result. Click the target tooth and modify areas with a brush and eraser. Drag the cursor to increase or eliminate the area, and click the “confirm” button to finish the modification.
Change tooth number: This tool can be useful for a patient with malformation. Click the target tooth and select the tooth number in the pop-up. If there are repetitive tooth numbers, a pop-up will remind users.
Remove teeth: Click the target tooth and click the “remove tooth” button to delete it.
Add teeth: Double-click the area that you want to add, select the corresponding teeth position number in the pop-up and then click the “confirm” button to finish adding. If necessary, you can apply the “modify area” function to modify the areas.
