The measurement function can provide accurate facial measurements for facial aesthetic treatment and analyze facial features and proportions of the face.
Measurement Tool
Name | Note |

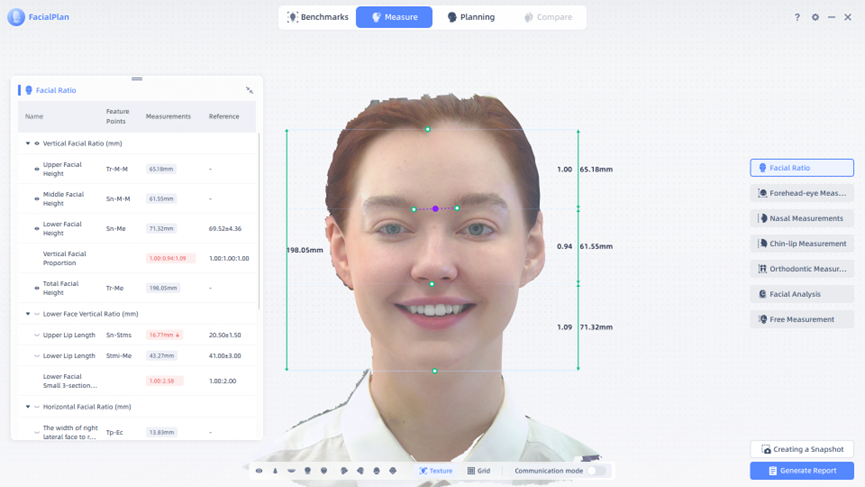

Facial Ratio | Facial Ratio refers to the perfectly proportioned facial model which normally divides the length of the face into three parts, and the width of the face into five parts. |
Forehead-eye Measurements | To measure the eye area. |
Nasal Measurements | To measure the nasal area. |
Chin-lip Measurements | To measure the mouth area. |
Orthodontic Measurements | The measurements can assist orthodontic treatment by comparing the measurements and referencing different measurement points. |
Facial Analysis | To analyze the proportion of the face and symmetry. |
Free Measurement | To measure the distance, angle, and area on the face. |
Free Measurement has the following three types of measurement:
1. Distance Measurement

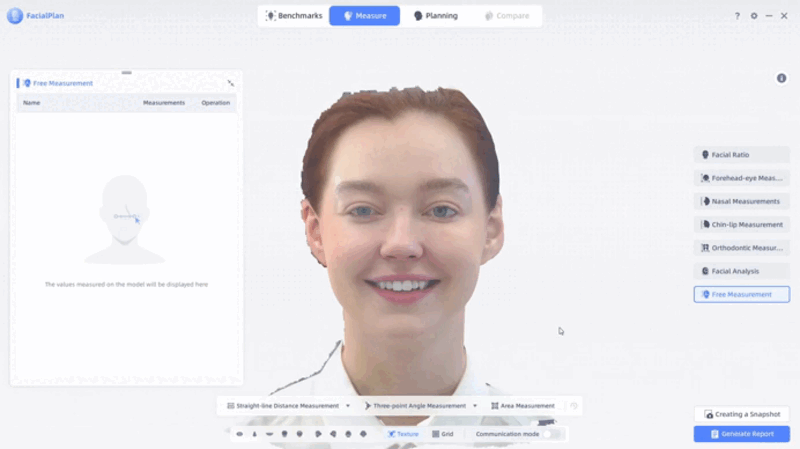

a) Straight-line Distance Measurement: Click on two different positions on the model to add measurement points. The two points are automatically connected into a straight line, and the length is displayed.
b) Surface Distance Measurement: Click on two different positions on the model to add measurement points. The two points are automatically connected by a curve along the shortest distance on the model's surface, and the length is displayed.
2. Angle Measurement

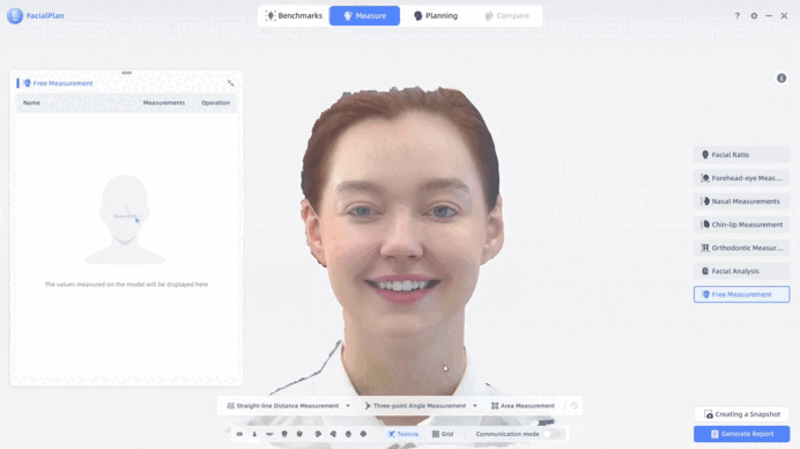

a) Three-point Angle Measurement: Click on three different positions on the model to add measurement points. The software calculates and displays the angle formed by the line connecting the first point to the third point.

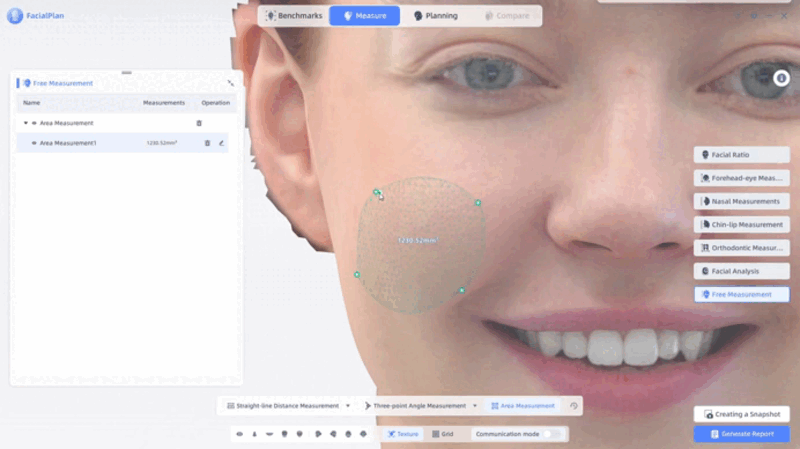

3. Area Measurement: Click at least three different positions on the model to add measurement points. When the last point is added, click the first point/double-click the new point to form a closed space and display the area.
Click the measurement again to exit, and then the users can move, add, and delete the measurement points:
Operation | Description | Note |
Move Point | Click on the measurement point and hold while moving the cursor. | / |
Add Point | Move the cursor to the edge of the area and click on the line. | / |
Delete Point | Right-double-click on the measurement point. | You cannot delete if there are fewer than 3 points. |

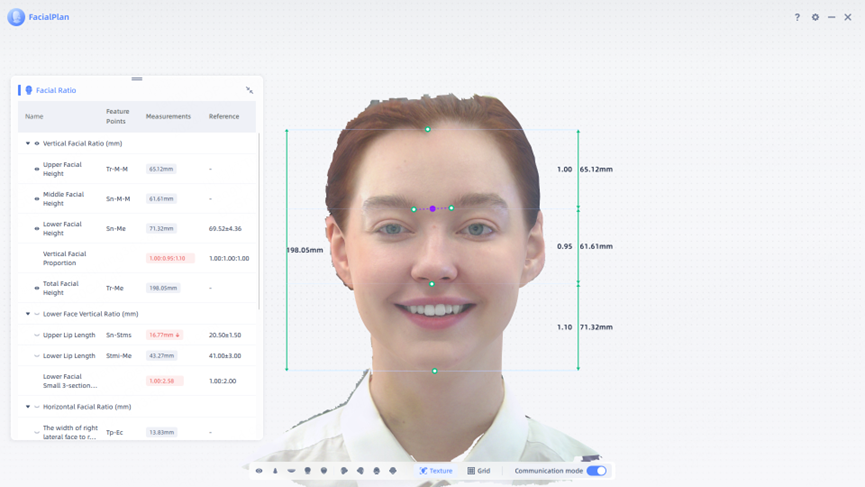

Measurement Form
The form is used to display and compare the various measurement data on the face, helping users understand the proportion of the face.
Each part contains specific measurement items and their corresponding feature points and measurement values, which are compared with the reference range. If the measurement value is highlighted, it means that the value is not within the reference range.
Toolbar
Facial Area: The software can align the model based on the benchmark result and focus on the corresponding area after clicking, including Eyes, Nose, Lips, Chin, and Forehead.
Four Views: The software supports displaying various views of the model based on the benchmark result.
Functions
Name | Description |
Texture | Show/Hide texture, texture is shown by default. |
Grid | Show/Hide the grid, the grid is hidden by default. |
Communication Mode | The interface only displays the model, measurement form, and toolbar when enabled. |
