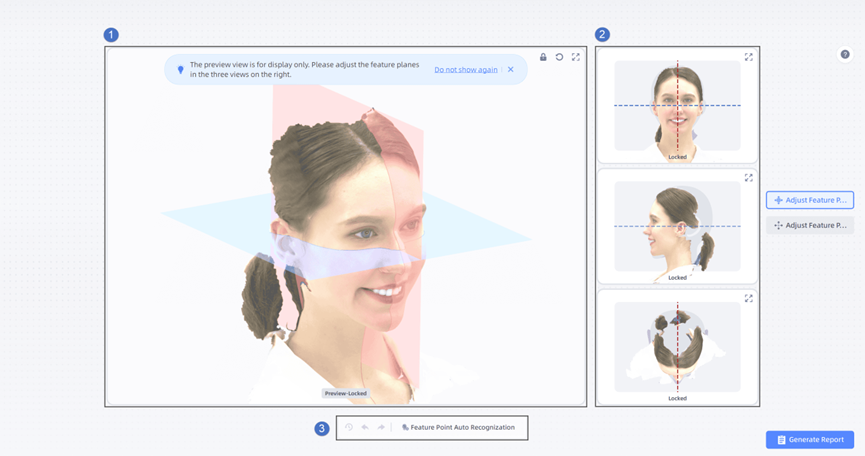

The feature planes and feature points of the model will be automatically identified for orienting correctly to the coordinate system after entering Benchmarks. It has the front view, side view, and top view of the model. You can also manually adjust the feature planes and feature points of the model to improve the accuracy of facial measurement.
Adjust Feature Plane
The feature plane is divided into the median sagittal plane (red plane) and the Frankfort horizontal plane (blue plane). Adjust the model of one of the views in the three views, and the models in the other two views and the feature plane of the preview will change.
Tips:
1. The preview view is for display only. Please adjust the feature planes in the three views on the right.
2. The median sagittal plane describes the plane that divides the torso into equal left and right parts.
3. The Frankfort horizontal plane is an imaginary plane from the bottom of the eye socket to the top of the ear opening.
Operation | Non-touch screen | Touch screen |
Rotate | Click and drag | Tap and drag |
Pan | Click and drag with the middle mouse button or the left and right buttons | Swipe with three fingers |
Zoom | Scroll wheel up or down | Pinch with two fingers to zoom in or out |

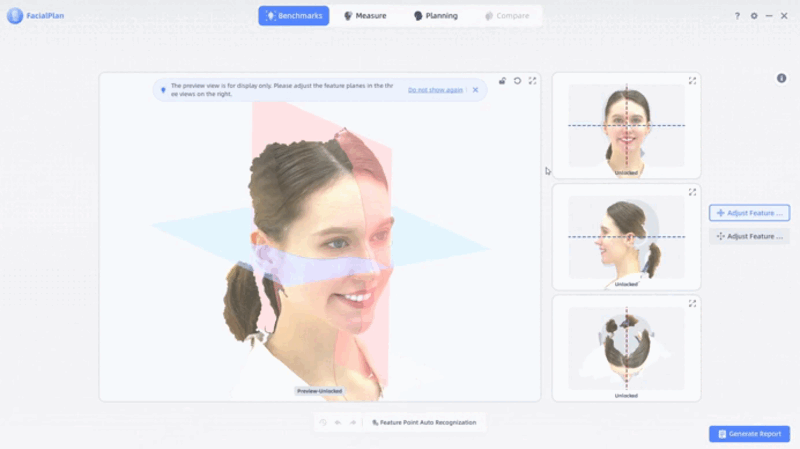

Lock/Unlock

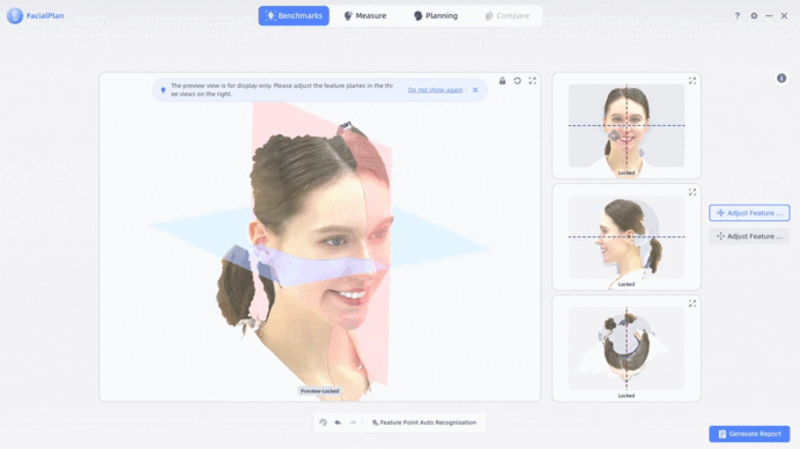

Locked State: When in the locked state, the three views show locked. At this time, adjusting the three-view model will automatically realign the model in the preview view.
Unlocked State: When in the unlocked state, the three views show unlocked. At this time, adjusting the three-view model will not change the model in the preview view, and its feature planes will move.
Reset view
Cancel all operations, and restore the model to the initial location.
Zoom in/Zoom out
Zoom in/Zoom out the preview view or the three views.
Name | Note |
Reset view | Remove all operations and restore the model to the initial location. |
undo | Reverse the last action. You can reverse more than one action. |
Redo | Reverse the last Undo. You can reverse more than one action that has been undone. |
Feature Point Auto Recognition | When the model has no/fewer feature points, its feature points cannot be adjusted and the report cannot be generated. Feature Point Auto Recognition is required after adjusting the feature plane. |

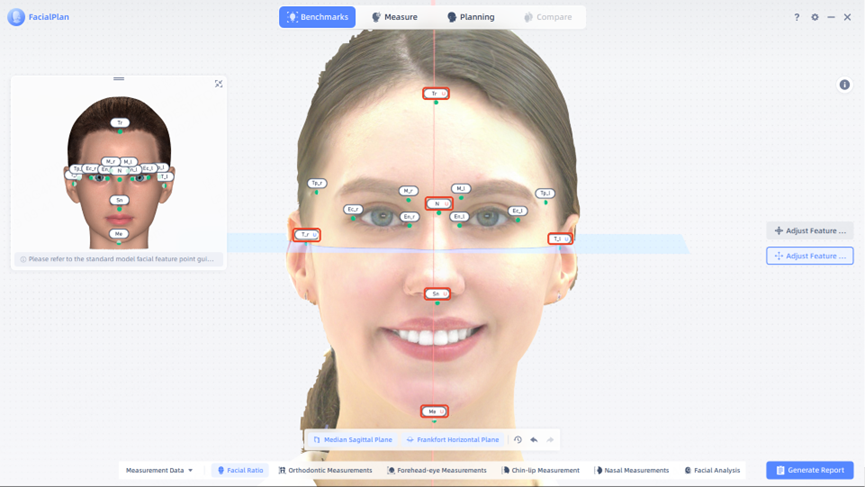

Adjust Feature Point
Feature points can accurately identify facial features, thereby improving the accuracy of facial measurement. The feature points can only be moved on the surface of the model. If the model displays the feature planes and the feature point with a magnet icon is close to the feature planes, the feature point will be automatically attracted to the feature plane.
Toolbar
Name | Note |
Median Sagittal Plane | Hide/Show the red plane on the model. |
Frankfort Horizontal Plane | Hide/Show the blue plane on the model. |
Reset | Remove all operations and restore the points to the initial location. |
Undo | Reverse the last action. You can reverse more than one action. |
Redo | Reverse the last Undo. You can reverse more than one action that has been undone. |
Measurement Tool
Facial Area: After clicking, the model’s view focuses on the Eyes/Nose/Lips/Chin/Forehead area, showing the feature points of the corresponding location.
Measurement Data
Name | Note |
Facial Ratio | The facial ratio here refers to the perfectly proportioned facial model which normally divides the length of the face into three parts, and the width of the face into five parts. |
Orthodontic Measurements | The measurements can assist orthodontic treatment by comparing the measurements and referencing different measurement points. |
Forehead-eye Measurements | To measure the eye area and compare the measurements with the reference values. |
Chin-lip Measurement | To measure the mouth area and compare the measurements with the reference values. |
Nasal Measurements | To measure the nasal area and compare the measurements with the reference values. |
Facial Analysis | To analyze the proportion of the face and symmetry. |
