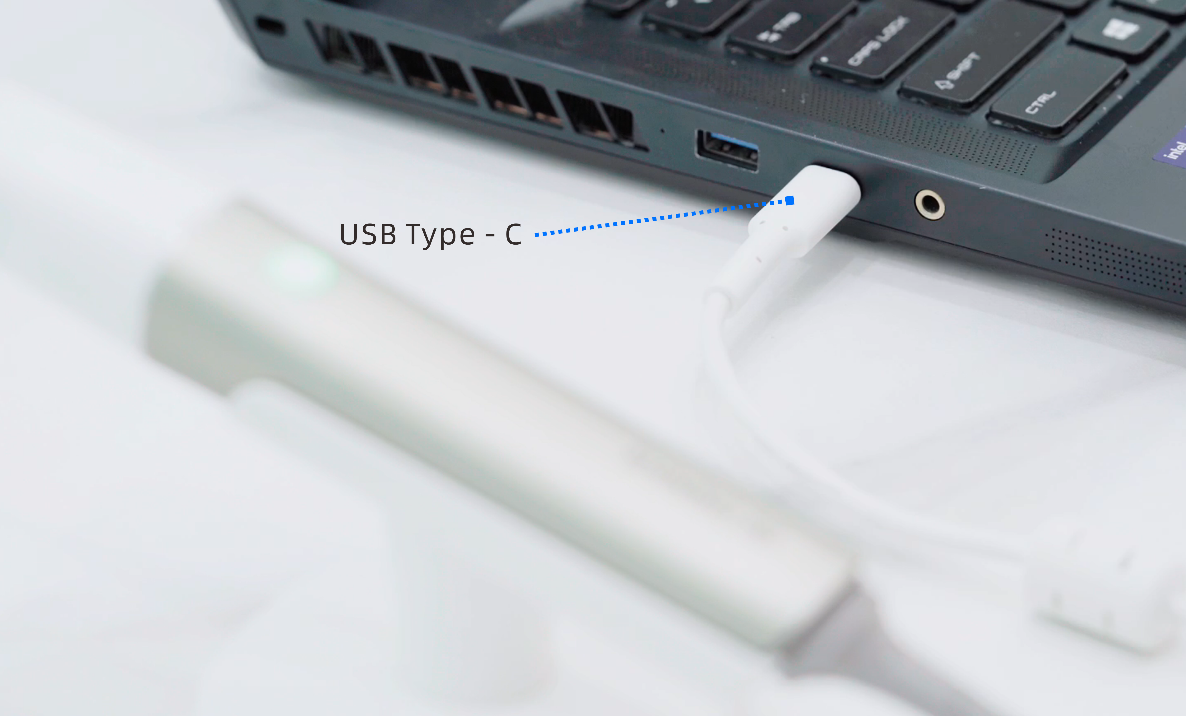

AoralScan Elite requires a USB-C power delivery enabled port with 5V, 3A output. If not, the device may not be normally connected to the PC. For feasible ports, please refer to the graph.
We recommend using a Type-C interface with a Thunderbolt port for the connection or any other port that can provide 15W charging power (self-poweredhub). ——(For MAC&WINDOWS)
Tips:
If the port does not operate properly, an externally powered USB hub or a USB type-A adapter can be connected to the scanner.
For the PC configuration, please refer to the following list.
Item | Requirements |
Operating System | Windows 10 Professional (64-bit) or later |
Memory (RAM) | 32 GB or higher |
Graphics card (NVIDIA only) | NVIDIA GeForce 3060, or higher (RTX 4060, or higher ) And not including RTX 3050, 4050 and 5050 AMD graphics cards is not supported RTX 5000 Series is not currently supported. RTX 5060 5070 5080 5090 |
CPU | Intel® Core™ i7-8700 or higher. Can not use Inter(R) Core(TM) 7 240H 2.50GHz( NOT compatible with 5060) |
Hard Drive | 256 GB SSD or above |
Available Space |
|
Screen Resolution | 1920 x 1080 or higher |
I/O Ports | More than 1 type-A USB 3.0 ports and 1 Type-C USB 3.0 port |
Power supply | AC input: 100-240V ~ 50/60Hz,1.0A |
For MAC
It is recommended to use MacBook Pro and Mac Mini. Mac Air is not recommended due to the lack of a cooling plate. If you need to use it, please pair it with a cooling fan at the bottom.
Item | Requirements |
Processor | Minimum: M2 (8-Core CPU, 10-Core GPU) |
RAM | 16GB or higher |
Hard driver | SSD Recommended: 1TB |
Operation system | Mac OS: Ventura 13 or higher |
Interface | Type-C Thunderbolt Port
|
