Pc configuration

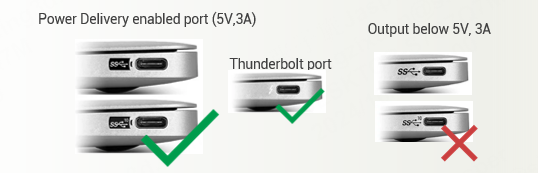

AoralScan Elite requires a USB-C power delivery enabled port with 5V, 3A output. If not, the device may not be normally connected to the PC. For feasible ports, please refer to the graph.


We recommend using a Type-C interface with a Thunderbolt port for the connection or any other port that can provide 15W charging power (self-powered hub). ——(For MAC&WINDOWS)


图表, 图示

中度可信度描述已自动生成

Tips:

If the port does not operate properly, an externally powered USB hub or a USB type-A adapter can be connected to the scanner.


For the PC configuration, please refer to the following list.

Item

Requirements

Operating System

Windows 10 Professional (64-bit) or later

Memory (RAM)

32 GB

      Graphics card

(NVIDIA only)

NVIDIA GeForce 3060, or higher (RTX 4060, or higher )

AMD graphics card is not supported

(RTX 5000 Series is not currently supported. RTX 5060 5070 5080 5090?)

And not including RTX 3050, 4050 and 5050

CPU

Intel® Core™ i7-8700 or above . cannot use Ultra

Can not use Inter(R) Core(TM) 7 240H  2.50GHz( NOT compatible with 5060)

Hard Drive

256 GB SSD or above

Available Space

  • Software installation location with a minimum available space of 8 GB
  • Order storage location with a minimum available space of 20 GB

Screen Resolution

1920 x 1080 or higher

I/O Ports

More than 1 type-A USB 3.0 ports and 1 Type-C USB 3.0 port

Power supply

AC input: 100-240V 50/60Hz1.0A
