This article applies to the D48, D48M2, D43, and D35 coded scan bodies.
This article provides the latest Implant system and Multi-unit abutment compatibility information officially released by Shining 3D and is continuously updated based on testing results.

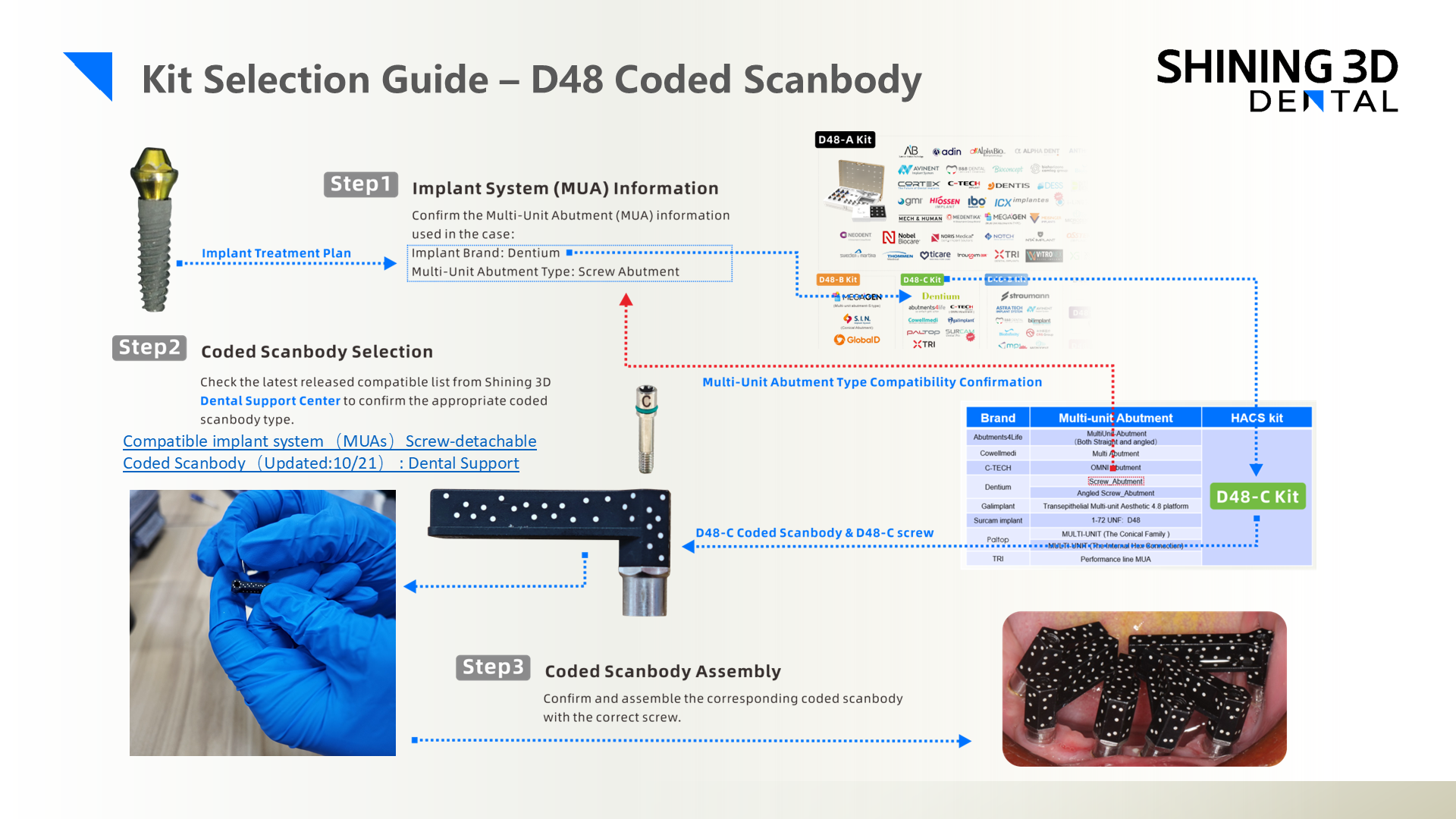

Please refer to the Coded Scanbody Kit Selection Guide to select the coded scan body combination you need to purchase.
You can use Ctrl + F in your browser to search for the implant brand information you need.

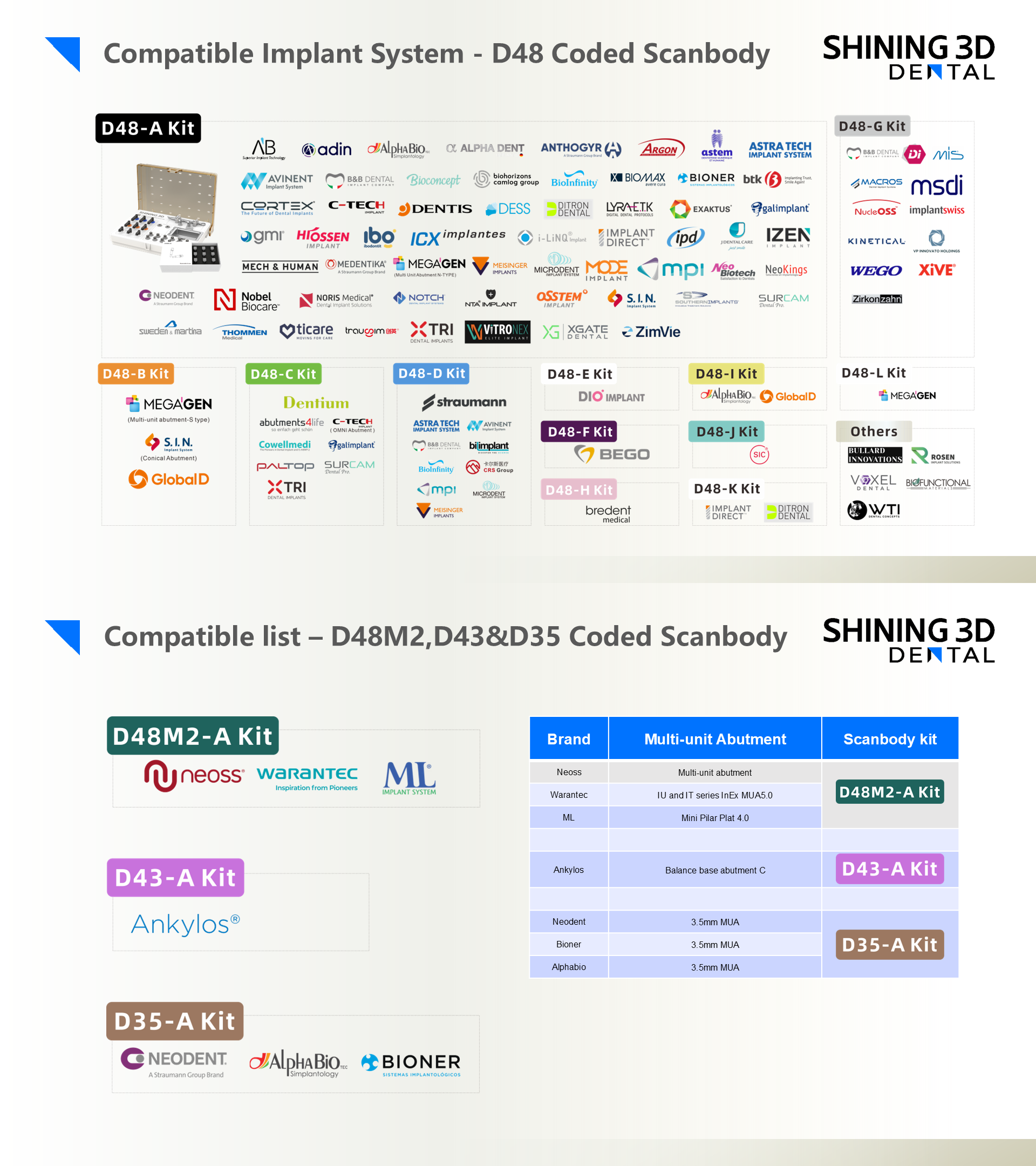

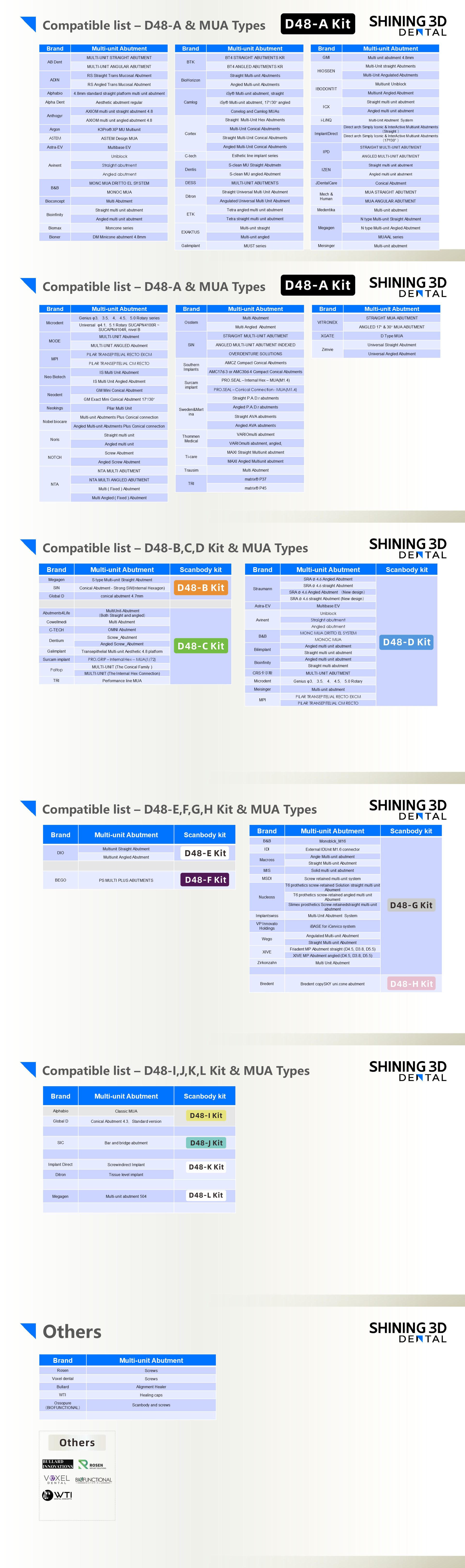

Coded Scanbody Kit Type | Brand | Multi-unit Abutment |
D48-A Kit | AB Dent | MULTI-UNIT STRAIGHT ABUTMENT |
MULTI-UNIT ANGULAR ABUTMENT | ||
ADIN | RS Straight Trans Mucosal Abutment | |
RS Angled Trans Mucosal Abutment | ||
Alphabio | 4.8mm standard straight platform Multi-unit Abutments | |
Alpha Dent | Aesthetic abutment regular | |
Anthogyr | AXIOM multi-unit straight abutment 4.8 | |
AXIOM multi-unit angled abutment 4.8 | ||
Argon | K3Pro® XP MU Multiunit | |
ASTEM | ASTEM Design MUA | |
Astra-EV | MultibaseEV | |
Avinent | Uniblock | |
Straight abutment | ||
Angled abutment | ||
B&B | MONC MUA DRITTO EL SYSTEM | |
MONOC MUA | ||
Bioconcept | Multi Abutment | |
Bioinfinity | Straight Multi-unit Abutments | |
Angled Multi-unit Abutments | ||
Biomax | Moncone series | |
Bioner | DM Miniconeabutment 4.8mm | |
BTK | BT4 STRAIGHT ABUTMENTS KR | |
BT4 ANGLED ABUTMENTS KR | ||
BioHorizon | Straight Multi-unit Abutments | |
Angled Multi-unit Abutments | ||
Camlog | iSy® Multi-unit abutment, straight | |
iSy® Multi-unit abutment, 17°/30°angled | ||
Conelogand CamlogMUAs | ||
Cortex | Straight Multi-Unit Hex Abutments | |
Multi-Unit Conical Abutments | ||
Straight Multi-Unit Conical Abutments | ||
Angled Multi-Unit Conical Abutments | ||
C-tech | Esthetic line implant series | |
Dentis | S-clean MU Straight Abutment | |
S-clean MU angled Abutment | ||
DESS | MULTI-UNIT ABUTMENTS | |
Ditron | Straight Universal Multi-unit Abutments | |
Angulated Universal Multi-unit Abutments | ||
ETK | Tetra angled multi-unit abutment | |
Tetra straight multi-unit abutment | ||
EXAKTUS | Multi-unit straight | |
Multi-unit angled | ||
Galimplant | MUST series | |
GMI | Multi-unit abutment 4.8mm | |
HIOSSEN | Multi-Unit straight Abutments | |
Multi-Unit Angulated Abutments | ||
IBODONTIT | Multiunit Uniblock | |
Multiunit Angled Abutment | ||
ICX | Straight multi-unit abutment | |
Angled multi-unit abutment | ||
i-LiNQ | Multi-Unit Abutment System | |
ImplantDirect | Direct arch Simply Iconic & InterActive Multi-unit Abutments （Straight ） | |
Direct arch Simply Iconic & InterActive Multi-unit Abutments （17º/30°） | ||
IPD | STRAIGHT MULTI-UNIT ABUTMENT | |
ANGLED MULTI-UNIT ABUTMENT | ||
IZEN | Straight Multi-unit Abutment | |
Angled Multi-unit Abutment | ||
JDentalCare | Conical Abutment | |
Mech & Human | MUA STRAIGHT ABUTMENT | |
MUA ANGULAR ABUTMENT | ||
Medentika | Multi-unit abutment | |
Megagen | N type Multi-unit Straight Abutment | |
N type Multi-unit Angled Abutment | ||
MUAAL series | ||
Meisinger | Multi-unit abutment | |
Microdent | Genius φ3， 3.5， 4， 4.5， 5.0 Rotary series | |
Universal φ4.1，5.1 Rotary SUCAPN4100R ~ SUCAPN4104R, nivel B | ||
MODE | MULTI-UNIT Abutment | |
MULTI-UNIT ANGLED Abutment | ||
MPI | PILAR TRANSEPITELIAL RECTO EXCM | |
PILAR TRANSEPITELIAL CM RECTO | ||
Neo Biotech | IS Multi-unit Abutment | |
IS Multi-unit Angled Abutment | ||
Neodent | GM Mini Conical Abutment | |
GM Exact Mini Conical Abutment 17°/30° | ||
Neokings | Pilar Multi Unit | |
Nobel biocare | Multi-unit Abutments Plus Conical Connection | |
Angled Multi-unit Abutments Plus Conical Connection | ||
Noris | Straight multi-unit | |
Angled multi-unit | ||
NOTCH | Screw Abutment | |
Angled Screw Abutment | ||
NTA | NTA MULTI ABUTMENT | |
NTA MULTI ANGLED ABUTMENT | ||
Multi ( Fixed ) Abutment | ||
Multi Angled ( Fixed ) Abutment | ||
Osstem | Multi Abutment | |
Multi Angled Abutment | ||
SIN | STRAIGHT MULTI-UNIT ABUTMENT | |
ANGLED MULTI-UNIT ABUTMENT INDEXED | ||
OVERDENTURE SOLUTIONS | ||
Southern Implants | AMCZ Compact Conical Abutments | |
AMC17d-3 or AMC30d-4 Compact Conical Abutments | ||
Surcam implant | PRO.SEAL–InternalHex–MUA(M1.4) | |
PRO.SEAL–ConicalConnection-MUA(M1.4) | ||
Sweden&Mart ina | Straight P.A.D.rabutments | |
Angled P.A.D.rabutments | ||
Straight AVA abutments | ||
Angled AVA abutments | ||
Swissimplant | ilinq MUA | |
Thommen Medical | VARIOmultiabutment | |
VARIO multi-abutment, angled | ||
Ti-care | MAXI Straight Multiunit abutment | |
MAXI Angled Multiunit abutment | ||
Trausim | Multi Abutment | |
TRI | matrix® P37 | |
matrix® P45 | ||
VITRONEX | STRAIGHT MUA ABUTMENT | |
ANGLED 17°& 30°MUA ABUTMENT | ||
XGATE | D Type MUA | |
Zimvie | Universal Straight Abutment | |
Universal Angled Abutment | ||
D48-B Kit | Megagen | S type Multi-unit Straight Abutment |
SIN | Conical Abutment -Strong SW(Internal Hexagon) | |
global D | conical abutment 4.7mm | |
| ||
D48-C Kit | Abutments4Life | MultiUnit-Abutment （Both Straight and angled） |
Cowellmedi | Multi Abutment | |
C-TECH | OMNI Abutment | |
Dentium | Screw_Abutment | |
Angled Screw_Abutment | ||
Galimplant | Transepithelial Multi-unit Aesthetic 4.8 platform | |
Surcamimplant | PRO.GRIP–InternalHex--MUA(1/72) | |
Paltop | MULTI-UNIT (TheConicalFamily ) | |
MULTI-UNIT (TheInternalHexConnection) | ||
TRI | Performance line MUA | |
| ||
D48-D Kit | Straumann | SRA ∅ 4.6 Angled Abutment |
SRA ∅ 4.6 straight Abutment | ||
SRA ∅ 4.6 Angled Abutment （New design） | ||
SRA ∅ 4.6straight Abutment (New design） | ||
Astra-EV | MultibaseEV | |
Avinent | Uniblock | |
Straight abutment | ||
Angled abutment | ||
B&B | MONC MUA DRITTO EL SYSTEM | |
MONOC MUA | ||
Bilimplant | Angled Multi-unit Abutment | |
Straight Multi-unit Abutment | ||
Bioinfinity | Angled Multi-unit Abutment | |
Straight Multi Abutment | ||
CRS卡尔斯 | MULTI-UNIT ABUTMENT | |
Microdent | Genius φ3， 3.5， 4， 4.5， 5.0 Rotary | |
Meisinger | Multi-unit Abutment | |
MPI | PILAR TRANSEPITELIAL RECTO EXCM | |
PILAR TRANSEPITELIAL CM RECTO | ||
| ||
D48-E Kit | DIO | Multiunit Straight Abutment |
Multiunit Angled Abutment | ||
| ||
D48-F Kit | BEGO | PS MULTI PLUS ABUTMENTS |
| ||
D48-G Kit | B&B | Monoblck_M16 |
IDI | External IDUnitM1.6 connector | |
Macross | Angle Multi-unit abutment | |
Straight Multi-unit Abutment | ||
MIS | Solid multi-unit abutment | |
MSDI | Screw retained multi-unit system | |
Nucleoss | T6 prosthetic screw-retained Solution straight multi-unit Abument | |
T6 prosthetic screw-retained angled multi-unit Abument | ||
Slimexprosthetics Screw-retainedstraightmulti-unit abutment | ||
Implantswiss | Multi-Unit Abutment System | |
VP Innovato Holdings | iBASE for iCervicosystem | |
Wego | Angulated Multi-unit Abutment | |
Straight Multi-unit Abutment | ||
XIVE | FriadentMP Abutment straight (D4.5, D3.8, D5.5) | |
XIVE MP Abutment angled (D4.5, D3.8, D5.5) | ||
Zirkonzahn | Multi Unit Abutment | |
| ||
D48-H Kit | Bredent | BredentcopySKYuni.coneabutment |
D48-I Kit | Alphabio | Classic MUA |
Global D | Conical Abutment 4.3，Standard version | |
D48-J Kit | SIC | Bar and bridge abutment |
D48-K Kit | Implant Direct | Screwindirect Implant |
Ditron | Tissue level implant | |
D48-L Kit | Megagen | Multi-unit abutment 504 |
D48M2-A Kit | Neoss | Multi-unit abutment |
Warantec | IU and IT series InEx MUA5.0 | |
ML | Mini Pilar Plat 4.0 | |
D43-A Kit | Ankylos | Balance base abutment C |
D35-A Kit | Neodent | 3.5mm MUA |
Bioner | 3.5mm MUA | |
Alphabio | 3.5mm MUA | |
Others | Rosen | Screws |
Voxel dental | Screws | |
Bullard | Alignment Healer | |
WTI | Healing caps | |
Ossopure （BIOFUNCTIONAL） | Scanbody and screws | |
